Thomas & Betts Co - Blackburn WR199 Compression Connector

Essential specifications

12-Digit UPC - 783786100033
Applications - For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Catalog Number - WR199
ERP_productname - BLKB WR199 1/0TO1H TAP CONN
Family Brand Name - ABB

Packaging

1 ea

EAN

00783786100033

Part #

158755

Catalog #

WR199

Commercial reference

WR199

12-Digit UPC:

783786100033

Applications:

For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.

Catalog Number:

WR199

ERP_productname:

BLKB WR199 1/0TO1H TAP CONN

Family Brand Name:

ABB

Finish:

Tin Plated

Length:

1-3/4 Inch

Material:

Aluminum

Number of Conductors:

Size:

Length 1-3/4 inch

Sub Brand:

Blackburn®

Tc Connection:

Compression

Type:

Wide-Range, Parallel, Short Sleeve

Wire Size:

Main: 1/0-3 ACSR or; 1/0-2 STR or 1 SOL AWG ; Tap: 2-4 ACSR or 1-4 STR or 1-2 SOL AWG

SoneparProductId:

SKU_US_58833539

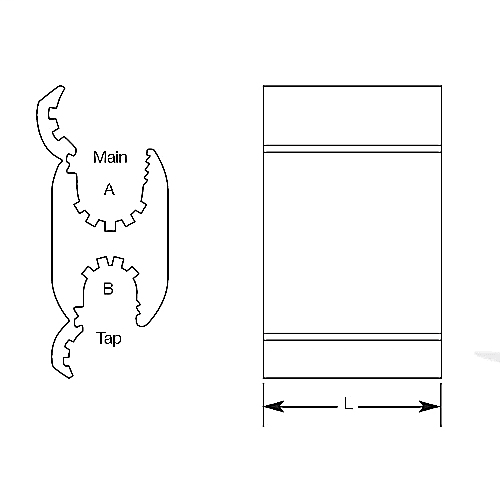

Aluminum Wide Range H-Type Compression Connector Main: 1/0-3 ACSR, 1/0-2 Str., 1 Sol., Tap: 2-4 ACSR, 1-4 Str., 1-2 Sol., Die: 0 Features: Enables excellent connector contact without distorting the conductor's shape.; Fold-in tabs provide positive tab interlock as tool closes.; Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.; RUS accepted and complies with ANSI C119.4
