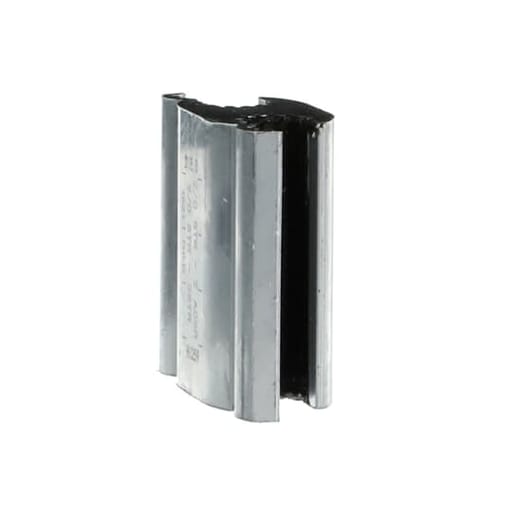

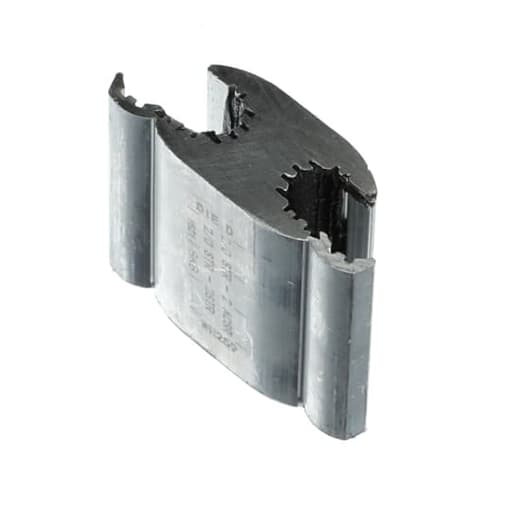

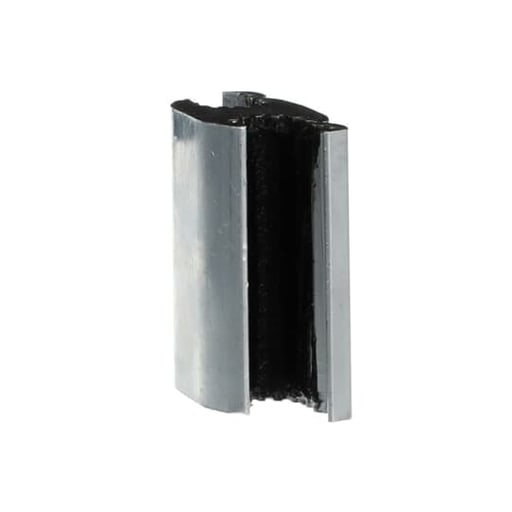

Thomas & Betts Co - Blackburn WR259 Compression Connector

Essential specifications

12-Digit UPC - 783786100040
Applications - For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Catalog Number - WR259
ERP_productname - BLKB WR259 2/0TO2/0OH TAP CONN
Family Brand Name - ABB

Packaging

1 ea

EAN

00783786100040

Part #

158768

Catalog #

WR259

Commercial reference

WR259

12-Digit UPC:

783786100040

Applications:

For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.

Catalog Number:

WR259

ERP_productname:

BLKB WR259 2/0TO2/0OH TAP CONN

Family Brand Name:

ABB

Finish:

Tin Plated

Length:

1-7/8 Inch

Material:

Aluminum

Number of Conductors:

Size:

Length 1-7/8 inch

Sub Brand:

Blackburn®

Tc Connection:

Compression

Type:

Wide-Range, Parallel, Short Sleeve

Wire Size:

Main: 1/0-2 ACSR or 2/0-1 STR AWG ; Tap: 1/0-2 ACSR or 2/0-2 STR AWG

SoneparProductId:

SKU_US_58833618

Aluminum Wide Range H-Type Compression Connector Main: 1/0 - 2 ACSR, 2/0 - 1 Str., Tap: 1/0 - 2 ACSR, 2/0 - 2 Str., Die: D, D3 Features: Fold-in tabs provide positive tab interlock as tool closes.; RUS accepted and complies with ANSI C119.4; Enables excellent connector contact without distorting the conductor's shape.; Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.
