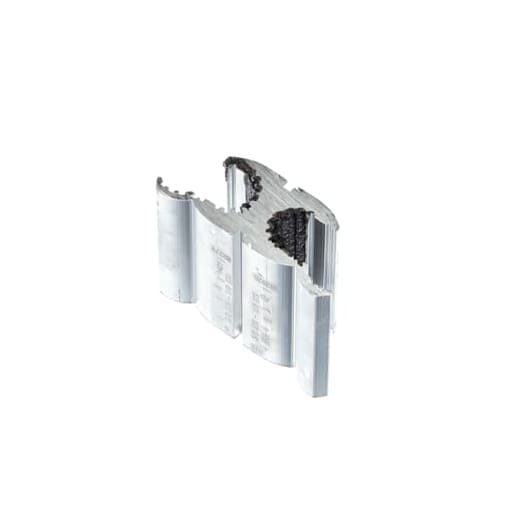

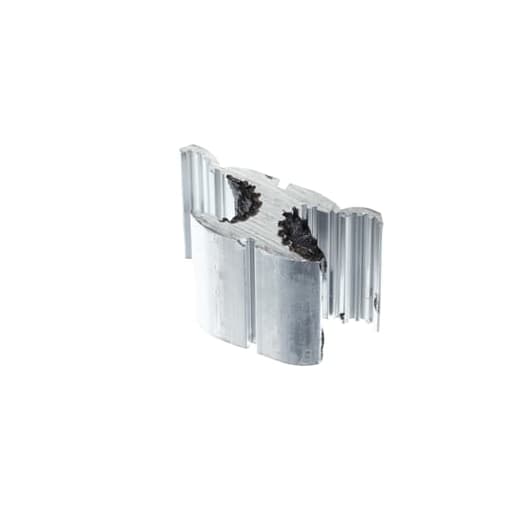

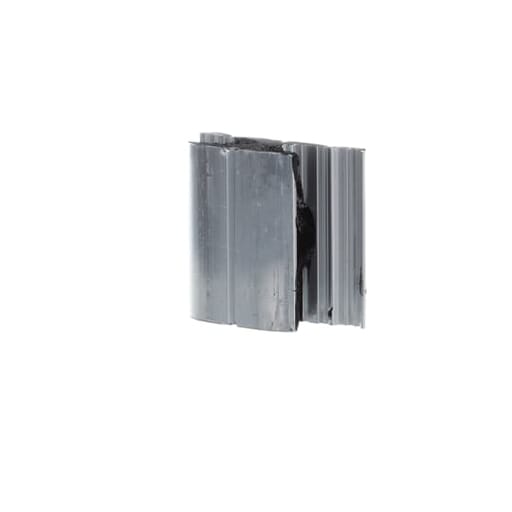

Thomas & Betts Co - Blackburn WR279 Compression Connector

Essential specifications

12-Digit UPC - 783786100071
Applications - For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Catalog Number - WR279
ERP_productname - BLKB WR279 3/0 TO 3/0 H TAP CONN
Family Brand Name - ABB

Packaging

250 ea

EAN

05415022349290

Part #

158798

Catalog #

WR279

Commercial reference

WR279

12-Digit UPC:

783786100071

Applications:

For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.

Catalog Number:

WR279

ERP_productname:

BLKB WR279 3/0 TO 3/0 H TAP CONN

Family Brand Name:

ABB

Finish:

Tin Plated

Length:

1-13/16 Inch

Material:

Aluminum

Number of Conductors:

Size:

Length 1-13/16 inch

Sub Brand:

Blackburn®

Tc Connection:

Compression

Type:

Wide-Range, Parallel, Short Sleeve

Wire Size:

Main: 2/0-1 ACSR or 3/0-1/0 STR or 4/0-2/0 SOL AWG ; Tap: 2/0-1 ACSR or 3/0-1/0 STR or 3/0-2/0 SOL AWG

SoneparProductId:

SKU_US_58045521

Aluminum Wide Range H-Type Compression Connector, Industry Standard Size Code 4, Main: 2/0-1 ACSR, 3/0-1/0 Str., 4/0-2/0 Sol. Tap: 2/0-1 ACSR, 3/0-1/0 Str., 3/0-2/0 Sol. Die: D, D3 Features: RUS accepted and complies with ANSI C119.4; Enables excellent connector contact without distorting the conductor's shape.; Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.; Fold-in tabs provide positive tab interlock as tool closes.
