Thomas & Betts Co - Blackburn WR289 Compression Connector

Essential specifications

12-Digit UPC - 783786100064
Applications - For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Catalog Number - WR289
ERP_productname - BLKB WR289 3/0 TO 1 H TAP CONN
Family Brand Name - ABB

Packaging

250 ea

EAN

05415022349306

Part #

158818

Catalog #

WR289

Commercial reference

WR289

12-Digit UPC:

783786100064

Applications:

For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.

Catalog Number:

WR289

ERP_productname:

BLKB WR289 3/0 TO 1 H TAP CONN

Family Brand Name:

ABB

Finish:

Tin Plated

Length:

1-13/16 Inch

Material:

Aluminum

Number of Conductors:

Size:

Length 1-13/16 inch

Sub Brand:

Blackburn®

Tc Connection:

Compression

Type:

Wide-Range, Parallel, Short Sleeve

Wire Size:

Main: 2/0-1/0 ACSR or 3/0-2/0 STR AWG ; Tap: 2-6 ACSR or 1-6 STR or 1/0-6 SOL AWG

SoneparProductId:

SKU_US_58012837

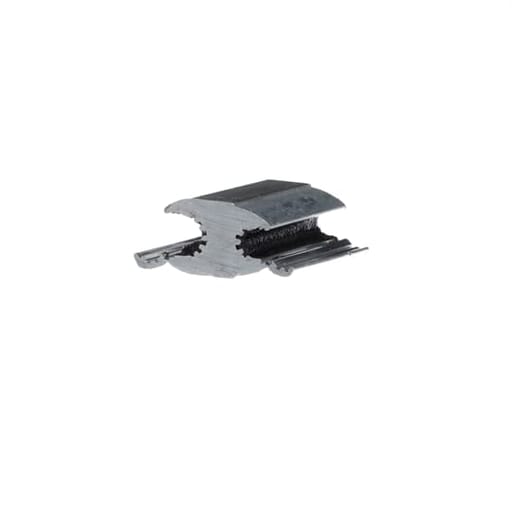

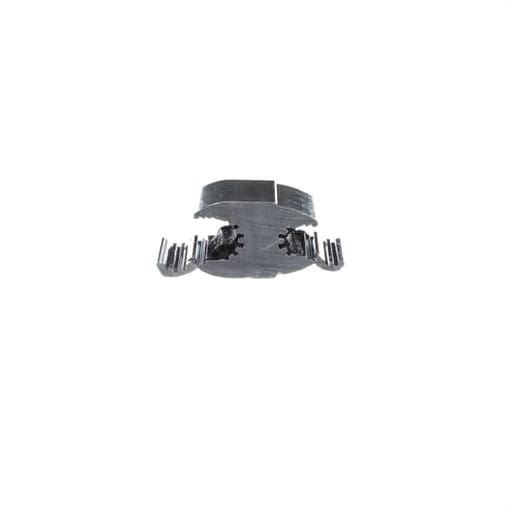

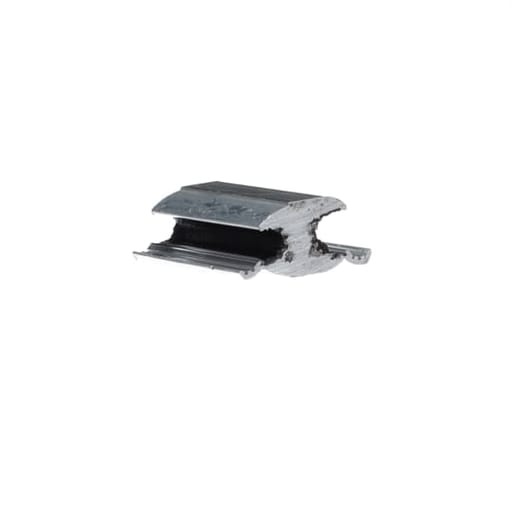

Aluminum Wide Range H-Type Compression Connector, Industry Standard Size Code 3, Main: 2/0 - 1/0 ACSR, 3/0 - 2/0 Str. Tap: 2-6 ACSR, 1-6 Str., 1/0-6 Sol. Die: D, D3 Features: RUS accepted and complies with ANSI C119.4; Enables excellent connector contact without distorting the conductor's shape.; Fold-in tabs provide positive tab interlock as tool closes.; Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.
