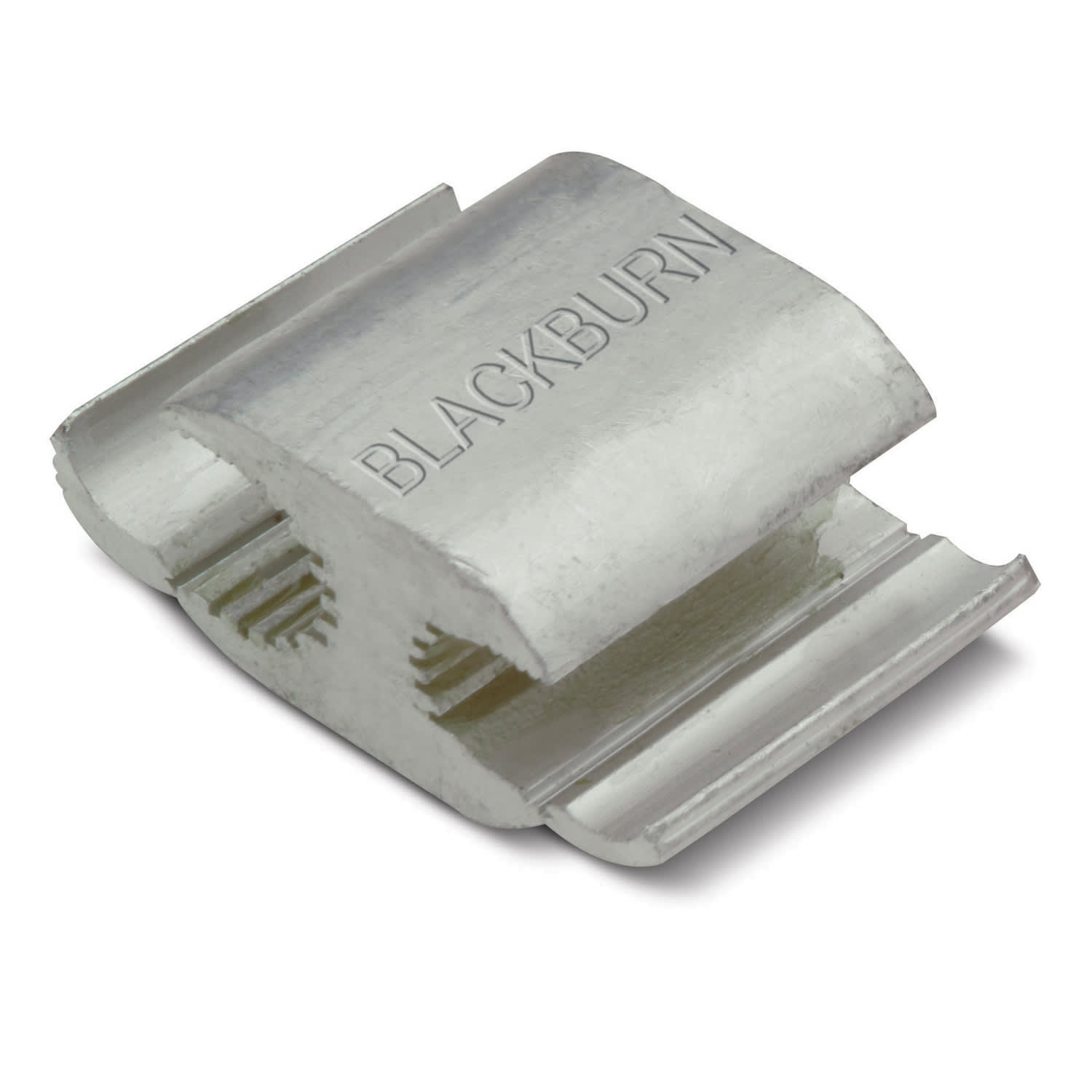

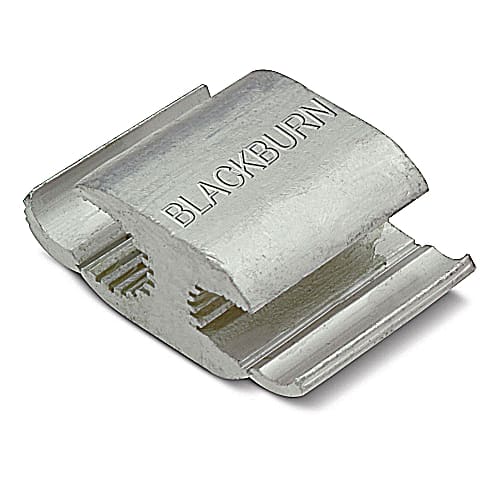

Thomas & Betts Co - Blackburn WR359 Compression Connector

Essential specifications

12-Digit UPC - 783786100088
Applications - For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Catalog Number - WR359
ERP_productname - BLKB WR359 4/0TO3H TAP CONN
Family Brand Name - ABB

Packaging

1 ea

EAN

00783786100088

Part #

158831

Catalog #

WR359

Commercial reference

WR359

12-Digit UPC:

783786100088

Applications:

For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.

Catalog Number:

WR359

ERP_productname:

BLKB WR359 4/0TO3H TAP CONN

Family Brand Name:

ABB

Finish:

Tin Plated

Length:

1-7/8 Inch

Material:

Aluminum

Mounting Type:

None

Number of Conductors:

Size:

Length 1-7/8 inch

Sub Brand:

Blackburn®

Tc Connection:

Compression

Type:

Wide-Range, Parallel, Short Sleeve

Wire Size:

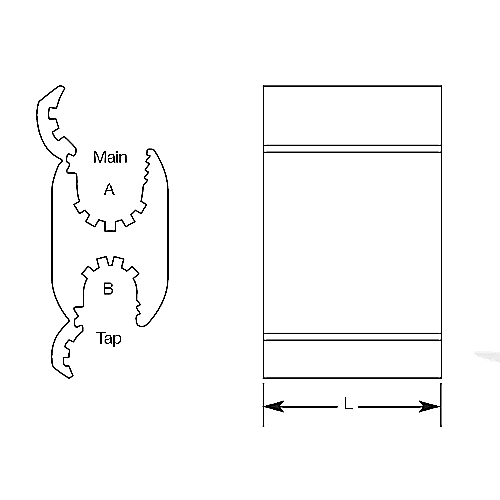

Main: 4/0-3/0 ACSR or 4/0-3/0 STR AWG ; Tap: 4-6 ACSR or 3-6 STR or 2-6 SOL AWG

SoneparProductId:

SKU_US_53152031

Aluminum Wide Range H-Type Compression Connector Main: 4/0 - 3/0 ACSR, 4/0 - 3/0 Str., Tap: 4-6 ACSR, 3-6 Str., 2-6 Sol., Die: D, D3 Features: RUS accepted and complies with ANSI C119.4; Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.; Fold-in tabs provide positive tab interlock as tool closes.; Enables excellent connector contact without distorting the conductor's shape. - Notes: Will accept standard conductors of the same size with a 3 percent reduction of compressed diameter.
