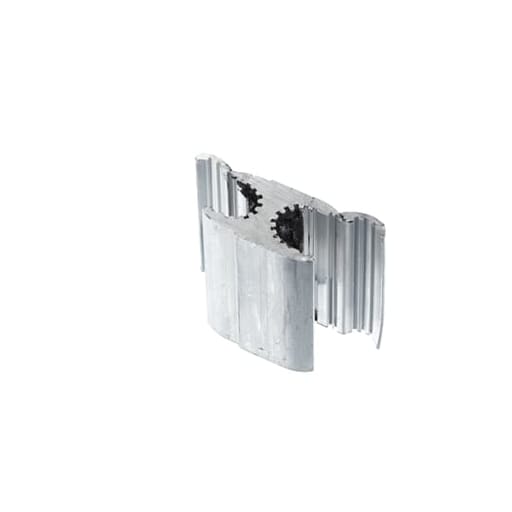

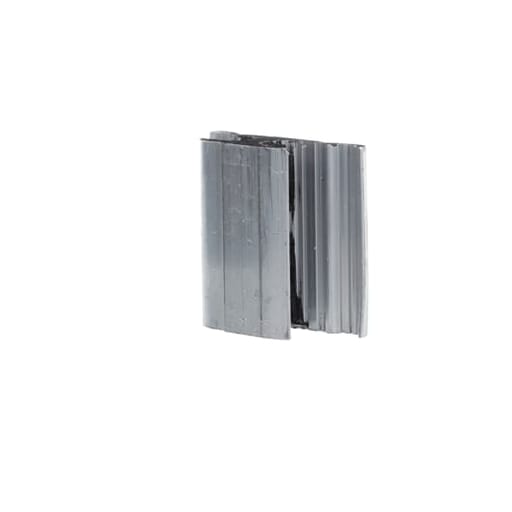

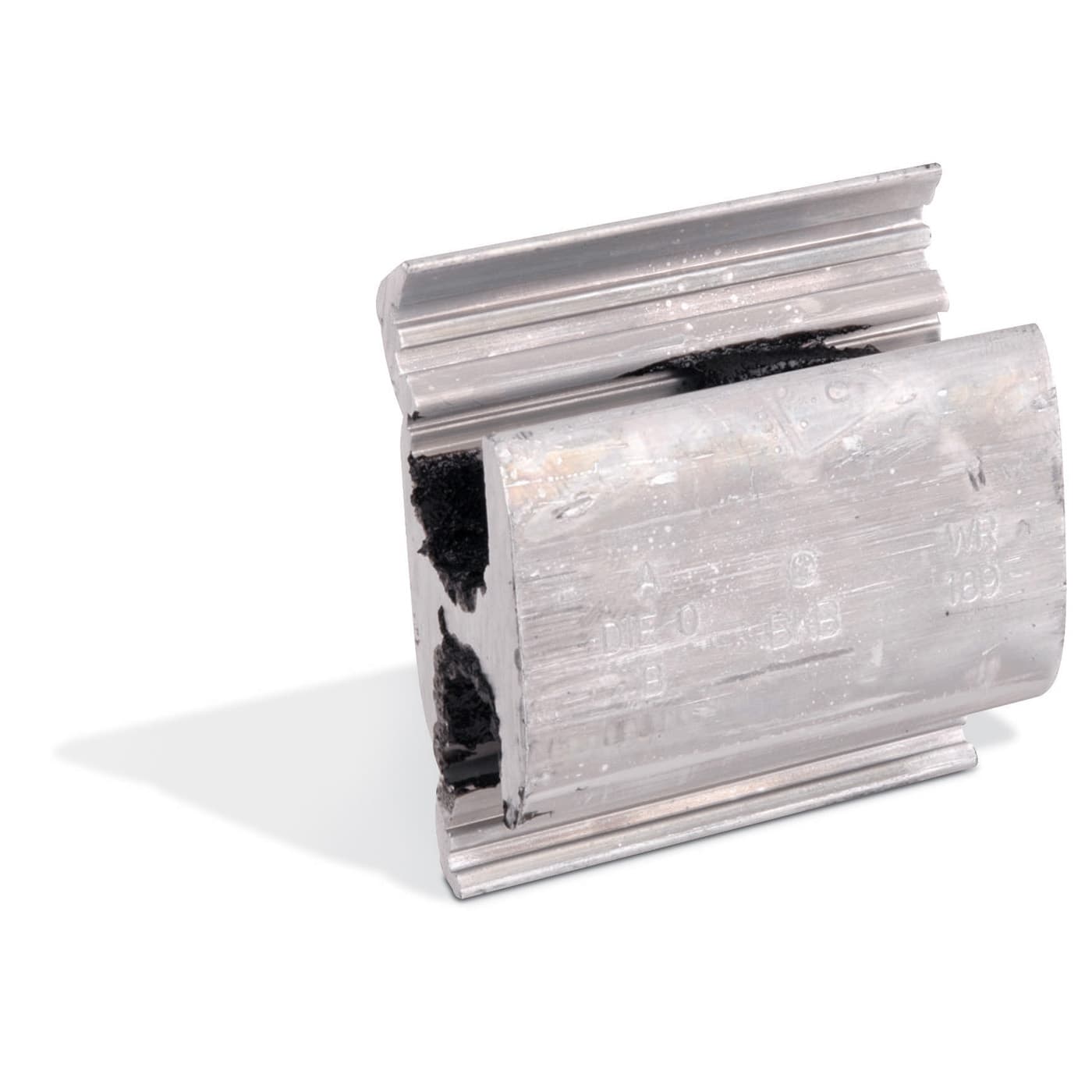

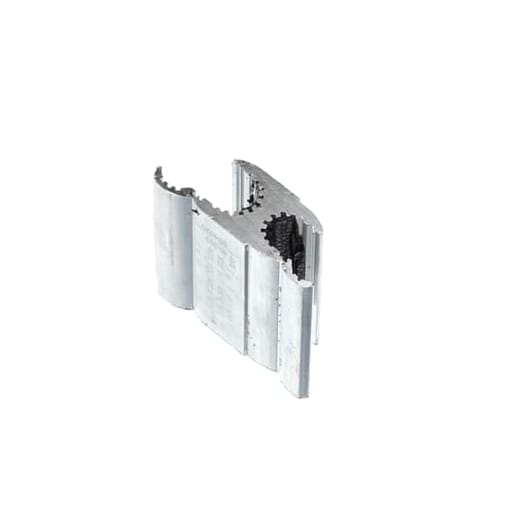

Thomas & Betts Co - Blackburn WR399 Compression Connector

Essential specifications

12-Digit UPC - 783786100101
Applications - For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Catalog Number - WR399
ERP_productname - BLKB WR399 TAP CONNECTOR
Family Brand Name - ABB

Packaging

25 ea

EAN

00783786100101

Part #

158860

Catalog #

WR399

Commercial reference

WR399

12-Digit UPC:

783786100101

Applications:

For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.

Catalog Number:

WR399

ERP_productname:

BLKB WR399 TAP CONNECTOR

Family Brand Name:

ABB

Finish:

Tin Plated

Length:

2-3/16 Inch

Material:

Aluminum

Number of Conductors:

Size:

Length 2-3/16 inch

Sub Brand:

Blackburn®

Tc Connection:

Compression

Type:

Wide-Range, Parallel, Long Sleeve

Wire Size:

Main: 4/0-3/0 ACSR or 4/0-3/0 STR AWG ; Tap: 2/0-1 ACSR or 2/0-1/0 STR or 3/0-2/0 SOL AWG

SoneparProductId:

SKU_US_58012711

Aluminum Wide Range H-Type Compression Connector, Industry Standard Size Code 6, Main: 4/0 - 3/0 ACSR, 4/0 - 3/0 Str. Tap: 2/0 - 1 ACSR, 2/0 - 1/0 Str. 3/0 - 2/0 Sol. Features: Fold-in tabs provide positive tab interlock as tool closes.; Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.; RUS accepted and complies with ANSI C119.4; Enables excellent connector contact without distorting the conductor's shape.
