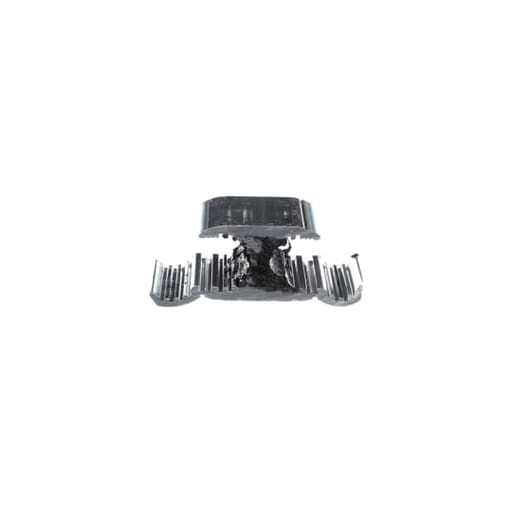

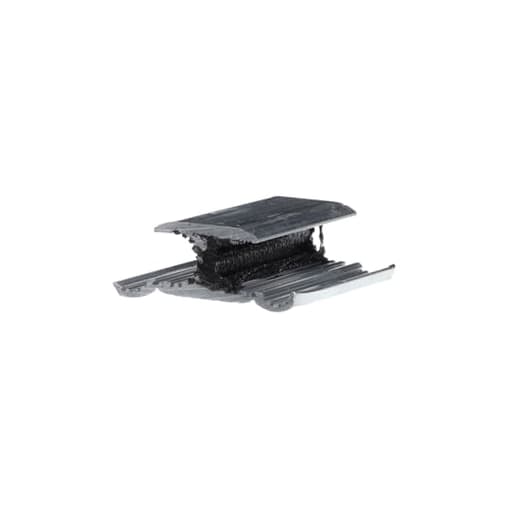

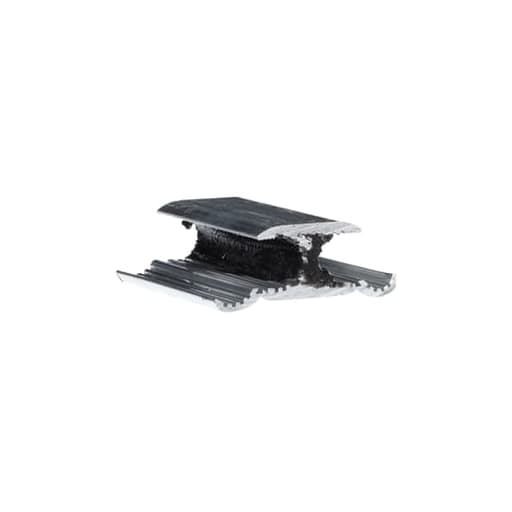

Thomas & Betts Co - Blackburn WR419 Compression Connector

Essential specifications

12-Digit UPC - 783786100118
Applications - For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Catalog Number - WR419
ERP_productname - BLKB WR419 COMP TAP CONN
Family Brand Name - ABB

Packaging

250 ea

EAN

05415022349320

Part #

158872

Catalog #

WR419

Commercial reference

WR419

12-Digit UPC:

783786100118

Applications:

For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.

Catalog Number:

WR419

ERP_productname:

BLKB WR419 COMP TAP CONN

Family Brand Name:

ABB

Finish:

Tin Plated

Length:

2-7/16 Inch

Material:

Aluminum

Number of Conductors:

Size:

Length 2-7/16 inch

Sub Brand:

Blackburn®

Tc Connection:

Compression

Type:

Wide-Range, Parallel, Long Sleeve

Wire Size:

Main: 4/0-3/0 ACSR or 4/0 STR AWG ; Tap: 2-6 ACSR or 1-6 STR or 1/0-6 SOL AWG

SoneparProductId:

SKU_US_57923742

Aluminum Wide Range H-Type Compression Connector, Industry Standard Size Code 7, Main: 4/0 - 3/0 ACSR, 4/0 - 3/0 Str. Tap: 4/0 - 3/0 ACSR, 4/0 - 3/0 Str. Die: D, D3 Features: Fold-in tabs provide positive tab interlock as tool closes.; Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.; Enables excellent connector contact without distorting the conductor's shape.; RUS accepted and complies with ANSI C119.4
