Thomas & Betts Co - Blackburn WR502 Compression Connector

Essential specifications

12-Digit UPC - 783786100378
Applications - For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Catalog Number - WR502
ERP_productname - BLKB WR502 AL HTYPE COMPCONN 4/0-3/0ASCR 8-10
Family Brand Name - ABB

Packaging

1 ea

EAN

00783786100378

Part #

150255

Catalog #

WR502

Commercial reference

WR502

12-Digit UPC:

783786100378

Applications:

For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.

Catalog Number:

WR502

ERP_productname:

BLKB WR502 AL HTYPE COMPCONN 4/0-3/0ASCR 8-10

Family Brand Name:

ABB

Finish:

Tin Plated

Length:

1-1/2 Inch

Material:

Aluminum

Number of Conductors:

Size:

Length 1-1/2 inch

Sub Brand:

Blackburn®

Tc Connection:

Compression

Type:

Wide-Range, Parallel, Short Sleeve

Wire Size:

Main: 4/0-3/0 ACSR or 4/0-3/0 STR AWG ; Tap A: 8-10 STR or 6-10 SOL AWG ; Tap B: 12-14 STR or 12-14 SOL AWG

SoneparProductId:

SKU_US_58832372

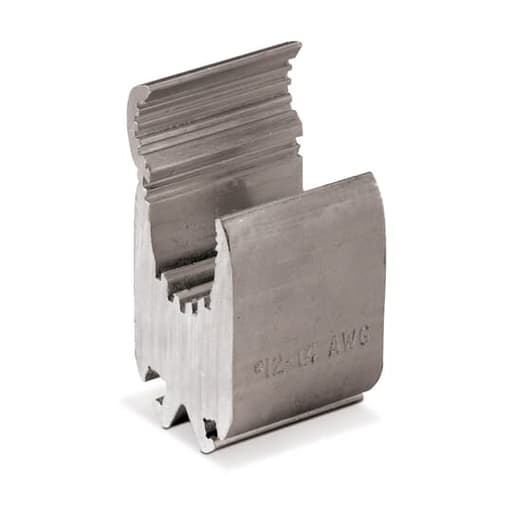

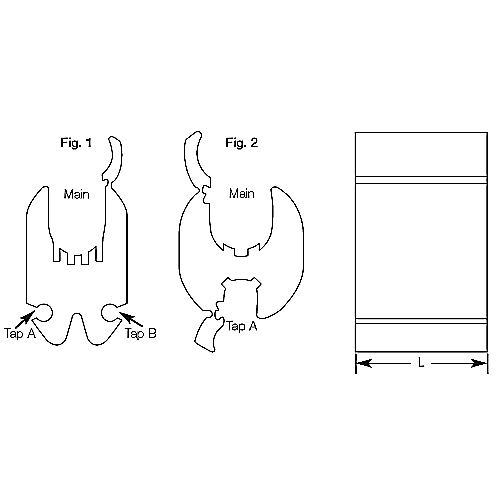

Aluminum Wide Range H-Type Compression Connector Main: 4/0 - 3/0 ACSR, 4/0 - 3/0 Str., Tap: 8 - 10 Str., 6 - 10 Sol., Groove C: 12 - 14 Str., 12 - 14 Sol. 1-1/2 inch Features: Enables excellent connector contact without distorting the conductor's shape.; RUS accepted and complies with ANSI C119.4; Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.; Fold-in tabs provide positive tab interlock as tool closes. - Notes: Fig. 1; Will accept standard conductors of the same size with a 3 percent reduction of compressed diameter.
