Thomas & Betts Co - Blackburn WR835 Compression Connector

Essential specifications

12-Digit UPC - 783786100231
Applications - For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Catalog Number - WR835
ERP_productname - BLKB WR835 COMPRESSION CONNECTOR
Family Brand Name - ABB

Packaging

1 ea

EAN

05415022349337

Part #

101870

Catalog #

WR835

Commercial reference

WR835

12-Digit UPC:

783786100231

Applications:

For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.

Catalog Number:

WR835

ERP_productname:

BLKB WR835 COMPRESSION CONNECTOR

Family Brand Name:

ABB

Finish:

Tin Plated

Length:

2 Inch

Material:

Aluminum

Number of Conductors:

Size:

Length 2 inch

Sub Brand:

Blackburn®

Tc Connection:

Compression

Type:

Wide-Range, Parallel, Long Sleeve

Wire Size:

Main: 477 18/0-4/0 ACSR or 556-250 STR kcmil ; Tap: 4/0-1/0 ACSR or 4/0-1/0 STR or 4/0-2/0 SOL AWG

SoneparProductId:

SKU_US_58012712

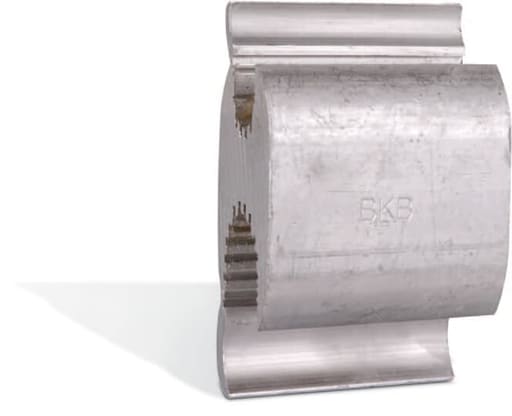

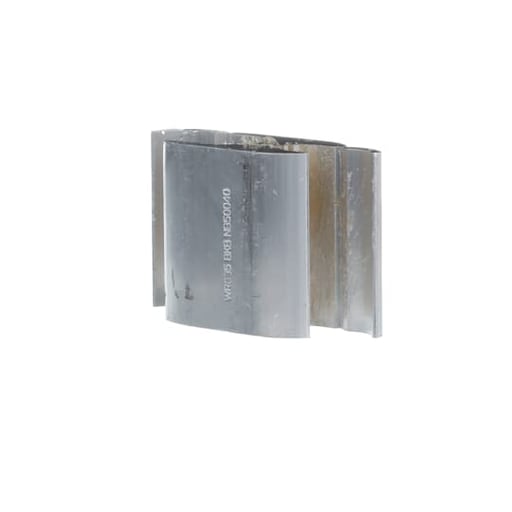

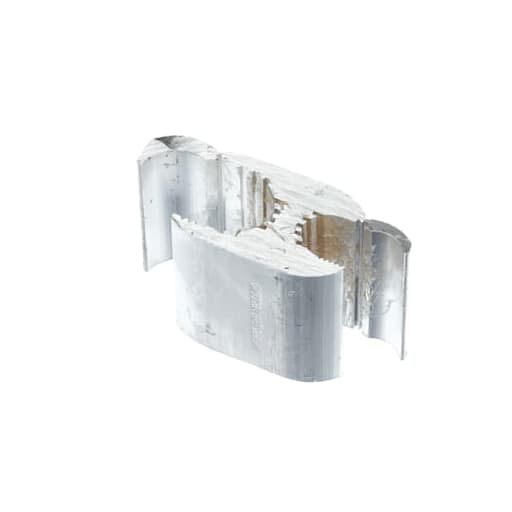

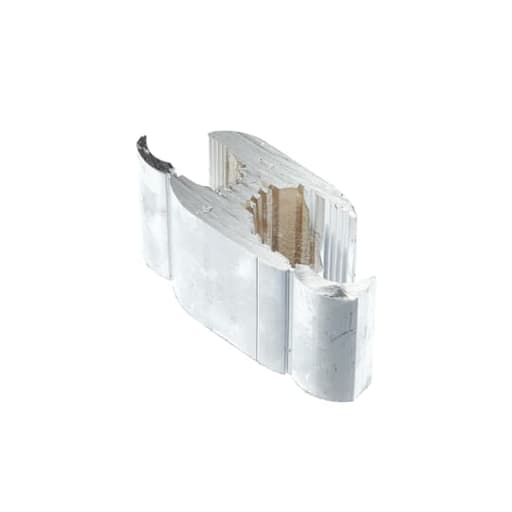

Aluminum Wide Range H-Type Compression Connector Main: 477 18/0-4/0 ACSR, 556-250 Str., Tap: 4/0-1/0 ACSR, 4/0-1/0 Str., 4/0-2/0 Sol. 2 inch. Features: Enables excellent connector contact without distorting the conductor's shape.; Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.; RUS accepted and complies with ANSI C119.4; Fold-in tabs provide positive tab interlock as tool closes. - Notes: Will accept standard conductors of the same size with a 3 percent reduction of compressed diameter.; All die connectors are for use with hydraulic tools, 12-ton and greater.; Fig. 1
