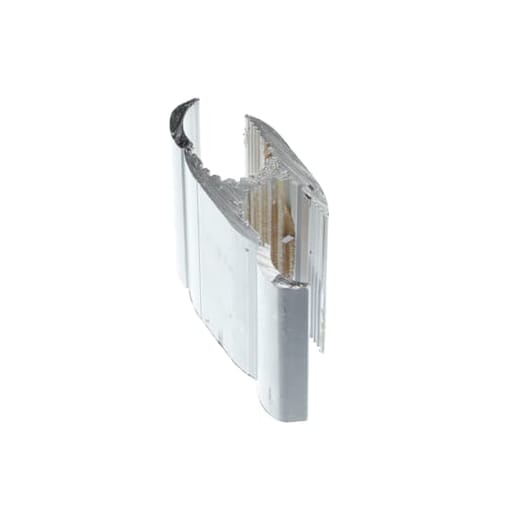

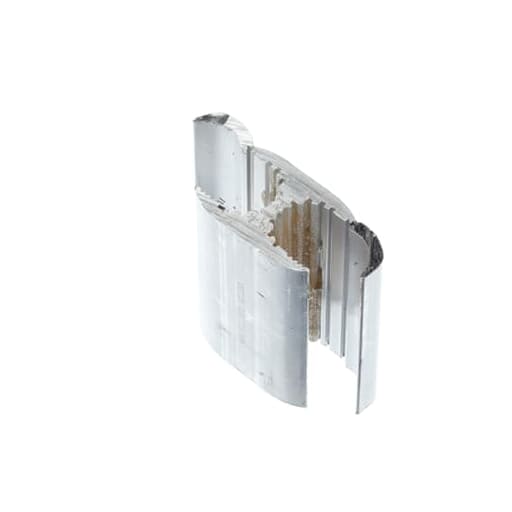

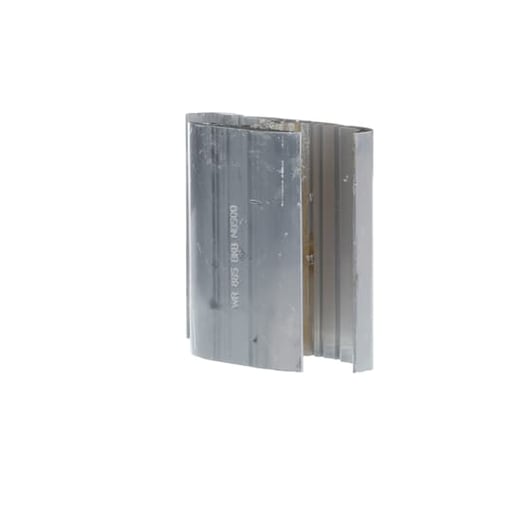

Thomas & Betts Co - Blackburn WR885 Compression Connector

Essential specifications

12-Digit UPC - 783786107186
Applications - For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Catalog Number - WR885
ERP_productname - BLKB WR885 500 TO 500 H TAP CONN
Family Brand Name - ABB

Packaging

1 ea

EAN

00783786107186

Part #

173732

Catalog #

WR885

Commercial reference

WR885

12-Digit UPC:

783786107186

Applications:

For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.

Catalog Number:

WR885

ERP_productname:

BLKB WR885 500 TO 500 H TAP CONN

Family Brand Name:

ABB

Finish:

Tin Plated

Length:

3 Inch

Material:

Aluminum

Number of Conductors:

Size:

Length 3 inch

Sub Brand:

Blackburn®

Tc Connection:

Compression

Type:

Wide-Range, Parallel, Long Sleeve

Wire Size:

Main: 477 (18/1)-4/0 ACSR or 500-4/0 STR AWG ; Tap: 477 (18/1)-4/0 ACSR or 500-4/0 STR AWG

SoneparProductId:

SKU_US_58832262

Aluminum Wide Range H-Type Compression Connector Main: 477 18/1-4/0 ACSR, 500-4/0 Str., Tap: 477 18/1-4/0 ACSR, 500-4/0 Str., Die: N 3 inches long Features: Fold-in tabs provide positive tab interlock as tool closes.; Enables excellent connector contact without distorting the conductor's shape.; Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.; RUS accepted and complies with ANSI C119.4 - Notes: Will accept standard conductors of the same size with a 3 percent reduction of compressed diameter.; Fig. 1; All die connectors are for use with hydraulic tools, 12-ton and greater.
