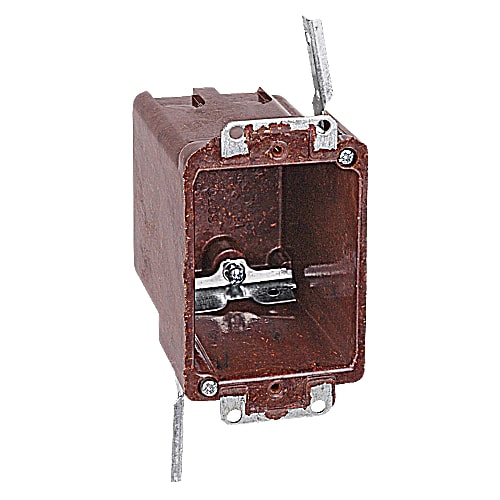

Thomas & Betts Co - Carlon 6070-4-UB 3-3/8 x 2-3/8 x 3-1/4 Inch 18cu.in 1-Gang Non-Metallic Swing Bracket Outlet Box
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786358522547
Applications - Can be installed in the same stud cavity of a shared two-hour wall.
Catalog Number - 6070-4
Color - Brown
Depths - 82.55 mm
Packaging
1 ea
EAN
00786358522547
Part #
222277
Catalog #
6070-4
Commercial reference
6070-4
12-Digit UPC:
786358522547
Applications:
Can be installed in the same stud cavity of a shared two-hour wall.
Catalog Number:
6070-4
Color:
Brown
Depths:
82.55 mm
ERP_productname:
UNI 6070-4 3-5/16D SWITCH BOX 1 GANG CUT IN FLIP EARS
Family Brand Name:
ABB
Length:
82.55 mm
Material:
Phenolic
Mounting Type:
Ears, #4 Swing Brackets
Number of Gangs:
1 Gang
Shape:
Rectangle
Type:
Outlet Boxes
Widths:
73.025 mm
SoneparProductId:
SKU_US_598185741
One-Gang Bracket Outlet Box, Volume 18 Cubic Inches, Length 3-1/4 Inches, Width 2-7/8 Inches, Depth 3-1/4 Inches, Color Brown, Material Phenolic, Mounting Means Ears and #4 Swing Bracket, with High Clamps Features: High clamps - Application: Listed for masonry walls; Can be installed in the same stud cavity of a shared two-hour wall.; Phenolic boxes may also face opposite directions with only a 3 in. horizontal separation, ideal for multi-family construction.; All phenolic boxes are permissible for use with 90 degree C connectors. - Certifications: UL
