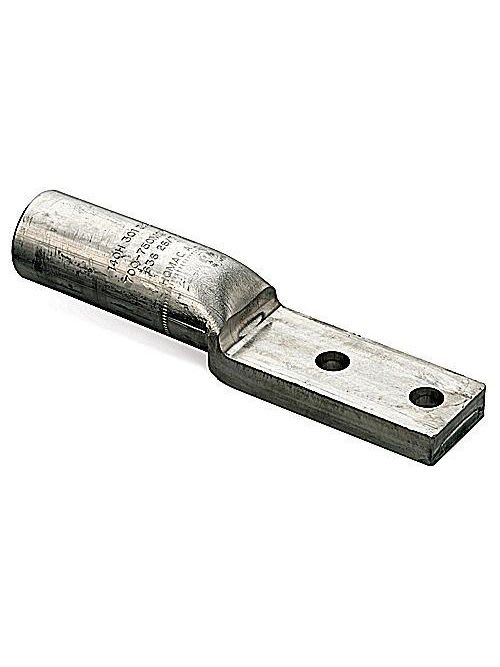

Thomas & Betts Co - Homac AL 1250 NTN 1-Hole Aluminum Lug

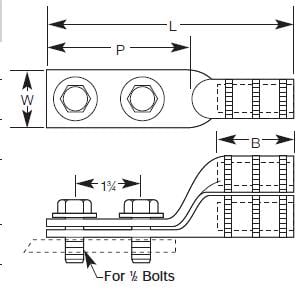

Tin Plated Aluminum Two-Hole NEMA Lugs - straight lug, 1200-1300 kcmil AL-CU, ACSR 1113 (45/7) and 1192.5 (45/7), installing dies 161, 727, 352. Length 9-11/16 inch. Pad 2-2/3 inch wide x 3-5/8 inch long x 39/64 inch thick. (2) 9/16 inch Diameter Holes with 1-3/4 Center to Center Spacing. Barrel 4-11/16 inch Long with 1-31/32 inch outside Diameter. Oxide Inhibitor, Yellow Cap. Features: Dual-Rated for Use with Aluminum and Copper Conductors.; Made of Aluminum for High Strength and High Conductivity.; Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.; All Lugs Marked with Conductor Size and Die References for Easy Identification.; Meets or Exceeds ANSI C119.4 Specifications.
