Thomas & Betts Co - INS NYL RING TRM 22-16 BLT #6 RED
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210817071
Catalog Number - RA333
Color - Red
Conductor Size - 22-16 AWG
ERP_productname - TBCO RA333 INS NYL RING TERM, 22-16, #6, RED
Packaging
1 ea
EAN
05414363157779
Part #
183477
Catalog #
RA333
Commercial reference
RA333
12-Digit UPC:
786210817071
Catalog Number:
RA333
Color:
Red
Conductor Size:
22-16 AWG
ERP_productname:
TBCO RA333 INS NYL RING TERM, 22-16, #6, RED
Family Brand Name:
ABB
Finish:
Tin Plated
Length:
0.72 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Nylon Insulated Ring Terminal
Voltage:
600 Volt
Widths:
0.23 in
Wire Size:
22-16 AWG
SoneparProductId:
SKU_US_28944508

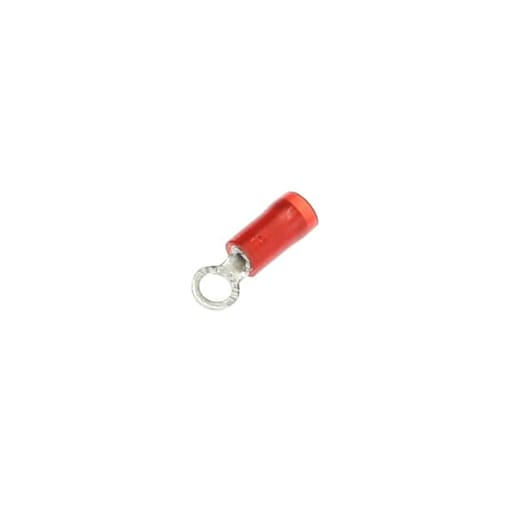

Nylon Insulated Ring Terminal, Length .72 Inches, Width .23 Inches, Maximum Insulation .136, Bolt Hole #6, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated, 1,000 Pack Features: Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. - Notes: Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
