Thomas & Betts Co - MECH FUSE/DISC KIT Y NONFSE 12-4 CU
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786717736
Amperage - 30 Amp
Applications - Rated 600V, 30 Amps Maximum, perfect for heavy-duty applications.
Catalog Number - DYU-M
Color - Black
Packaging
1 ea
EAN
00783786717736
Part #
276316
Catalog #
DYU-M
Commercial reference
DYU-M
12-Digit UPC:
783786717736
Amperage:
30 Amp
Applications:
Rated 600V, 30 Amps Maximum, perfect for heavy-duty applications.
Catalog Number:
DYU-M
Color:
Black
ERP_productname:
BLKB DYU-M MECH FUSE/DISC KIT Y NONFSE 12-4 CU
Family Brand Name:
Homac
Material:
Aluminum
Number of Conductors:
3
Tc Connection:
Mechanical
Type:
Break-Away Streetlight Kits
Voltage:
600 Volt
SoneparProductId:
SKU_US_73536792

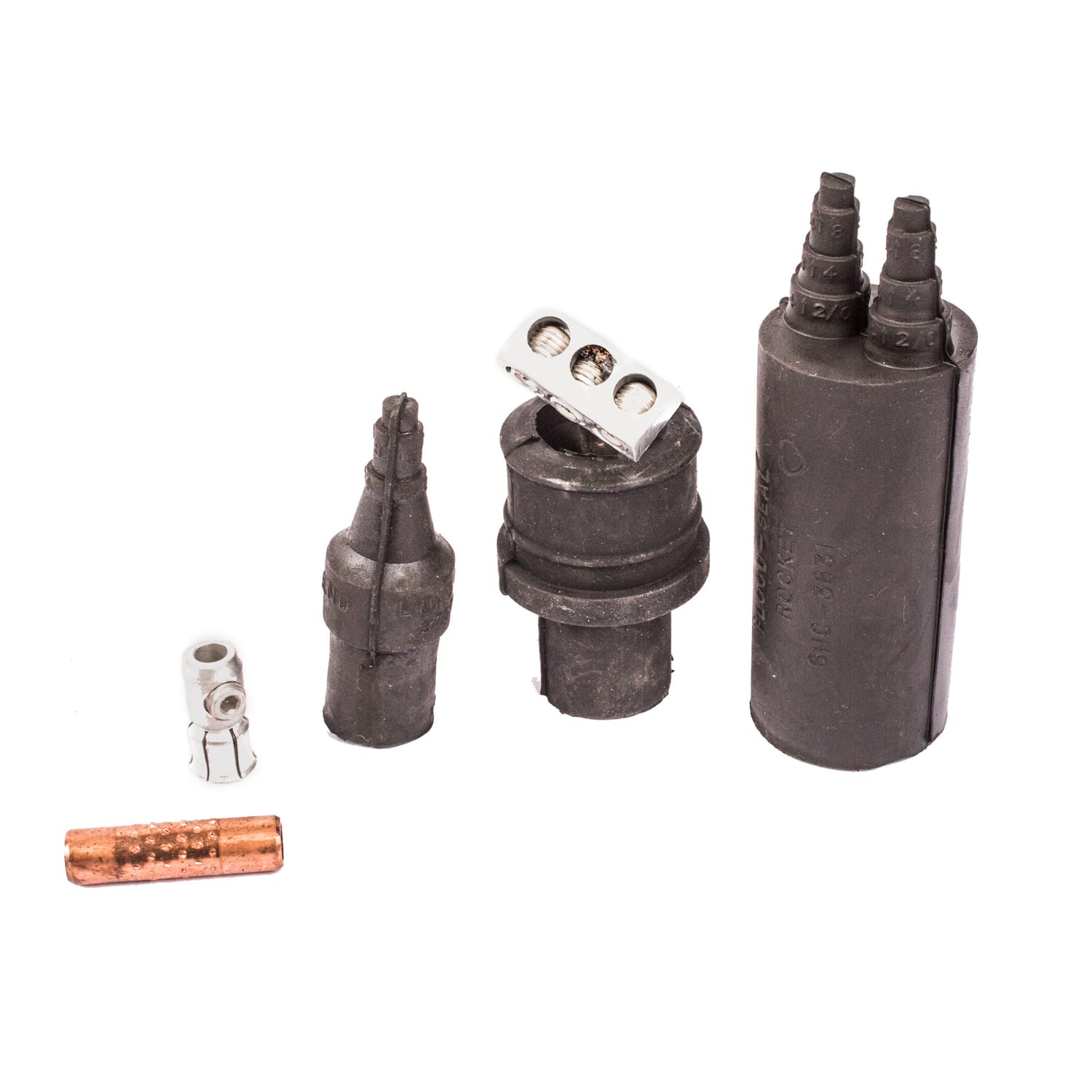

Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits - Y Type Disconnect Kit, non-fused, conductor range main 14-2 tap 12-4 Features: EPDM Flood-Seal Housing ensures a fully insulated, watertight, and submersible connection; Safe separations to ensure fuse or connecting link stays in load side when separated; Beakaway design separates under tension so wires don't break; Re-Enteralbe to enable sectionalizing; Matching Ampacit Rating - run or feeder lugs have the same ampacity rating as the cable, up to 2/0; Y-Ype Mechanical Run Compression Taps use a 1/8 nich Hex wrench for easy Installation. - Applications: Rated 600V, 30 Amps Maximum, perfect for heavy-duty applications.
