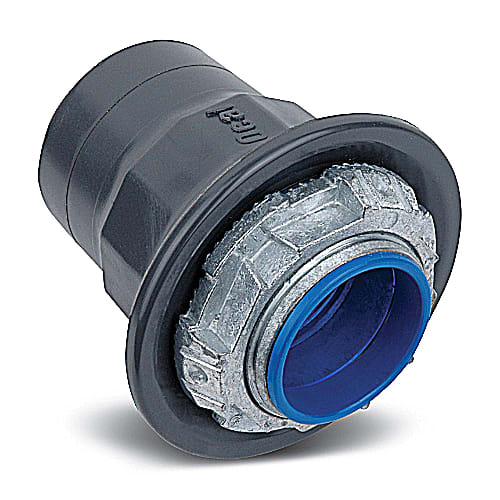

Thomas & Betts Co - Ocal HUB11/2-G 1-1/2 Inch Ocal Dark Gray Hub Connector
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 704508388249
Applications - For Positively Bonding Conduit to Box or Enclosure
Catalog Number - HUB11/2-G
Color - Dark Gray
ERP_productname - CARB HUB11/2-G 1-1/2 PVC COATED HUB
Packaging
1 ea
EAN
00704508388249
Part #
265011
Catalog #
HUB11/2-G
Commercial reference
HUB11/2-G
12-Digit UPC:
704508388249
Applications:
For Positively Bonding Conduit to Box or Enclosure
Catalog Number:
HUB11/2-G
Color:
Dark Gray
ERP_productname:
CARB HUB11/2-G 1-1/2 PVC COATED HUB
Family Brand Name:
ABB
Finish:
PVC Coated
Material:
PVC
Size:
1-1/2 in
Sub Brand:
Ocal®
Trade Size:
1-1/2 Inch
Type:
Hub Connector
SoneparProductId:
SKU_US_57989813

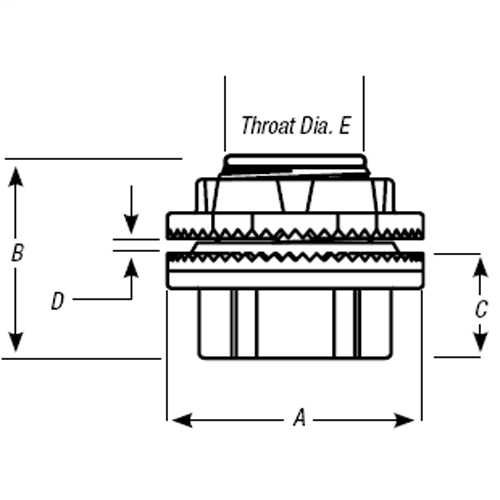

PVC Coated Zinc Hub Connector with Thermoplastic Insulated Throat, Pipe Size 1-1/2 Inch/41 Metric, Overall Diameter 2.75 Inch/69.85 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 1.53 Inch/38.86 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray Features: A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior.; Pressure sealing sleeves to protect the connection.; Insulated throat and sharper and deeper teeth.; Innovative sealing ring and groove.; Hexagonal body and locknut design.; Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied. - Notes: Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289.; Dimensional values are of uncoated fittings.
