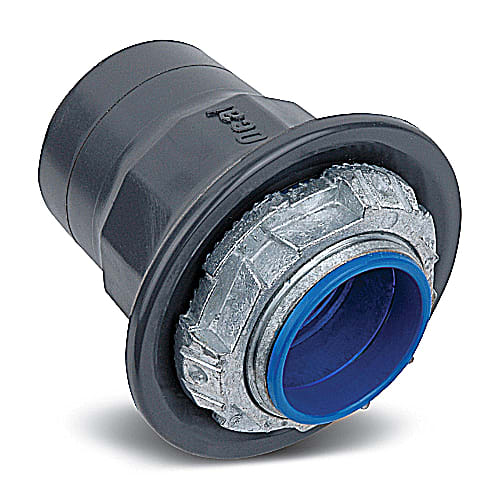

Thomas & Betts Co - Ocal HUB11/4-G 1-1/4 Inch Ocal Dark Gray Hub Connector
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 704508388317
Applications - To Positively Bond Conduit to Box or Enclosure
Catalog Number - HUB11/4-G
Color - Dark Gray
ERP_productname - TBCO HUB11/4-G 1 1/4 OCAL HUB GRAY
Packaging
1 ea
EAN
00704508388317
Part #
194869
Catalog #
HUB11/4-G
Commercial reference
HUB11/4-G
12-Digit UPC:
704508388317
Applications:
To Positively Bond Conduit to Box or Enclosure
Catalog Number:
HUB11/4-G
Color:
Dark Gray
ERP_productname:
TBCO HUB11/4-G 1 1/4 OCAL HUB GRAY
Family Brand Name:
ABB
Finish:
PVC Coated
Material:
Zinc
Size:
1-1/4 in
Sub Brand:
Ocal®
Trade Size:
1-1/4 Inch
Type:
Hub Connector
SoneparProductId:
SKU_US_57893895

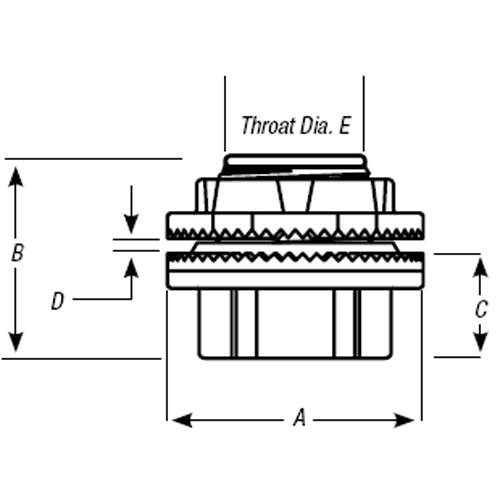

PVC Coated Zinc Hub Connector with Thermoplastic Insulated Throat, Pipe Size 1-1/4 Inch/35 Metric, Overall Diameter 2.38 Inch/60.45 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 1.31 Inch/33.27 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray Features: Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied.; Pressure sealing sleeves to protect the connection.; Insulated throat and sharper and deeper teeth.; Hexagonal body and locknut design.; Innovative sealing ring and groove.; A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior. - Notes: Dimensional values are of uncoated fittings.; Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289.
