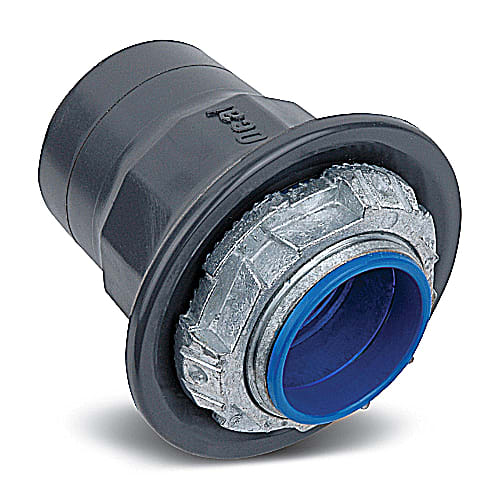

Thomas & Betts Co - Ocal HUB21/2-G 2-1/2 Inch Ocal Gray Hub
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 704508388522
Applications - For Positively Bonding Conduit to Box or Enclosure
Catalog Number - HUB21/2-G
Color - Dark Gray
ERP_productname - OCAL HUB21/2-G PVC CTD ZINC HUB CONN 2-1/2IN DGRAY
Packaging
1 ea
EAN
00704508388522
Part #
330642
Catalog #
HUB21/2-G
Commercial reference
HUB21/2-G
12-Digit UPC:
704508388522
Applications:
For Positively Bonding Conduit to Box or Enclosure
Catalog Number:
HUB21/2-G
Color:
Dark Gray
ERP_productname:
OCAL HUB21/2-G PVC CTD ZINC HUB CONN 2-1/2IN DGRAY
Family Brand Name:
ABB
Finish:
PVC Coated
Material:
PVC
Size:
2-1/2 in
Sub Brand:
Ocal®
Trade Size:
2-1/2 Inch
Type:
Hub Connector
SoneparProductId:
SKU_US_58375456

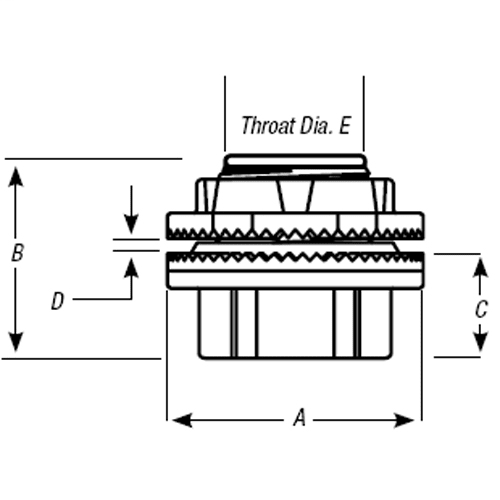

PVC Coated Zinc Hub Connector with Thermoplastic Insulated Throat, Pipe Size 2-1/2 Inch/63 Metric, Overall Diameter 3.75 Inch/95.25 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 2.41 Inch/61.21 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray Features: Pressure sealing sleeves to protect the connection.; Insulated throat and sharper and deeper teeth.; Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied.; Hexagonal body and locknut design.; A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior.; Innovative sealing ring and groove. - Notes: Dimensional values are of uncoated fittings.; Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289.
