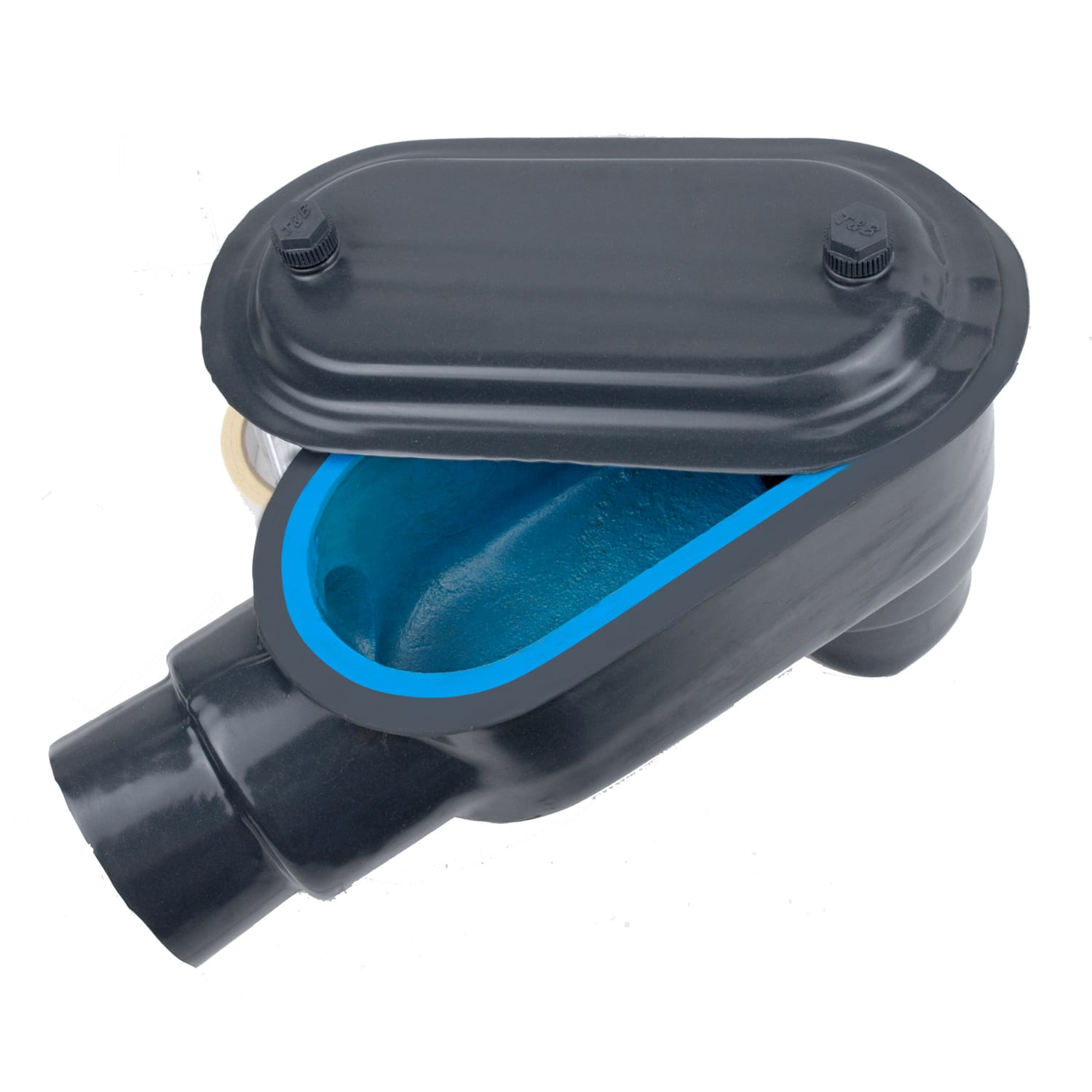

Thomas & Betts Co - OCAL LB27SA-G PVC Coated Conduit

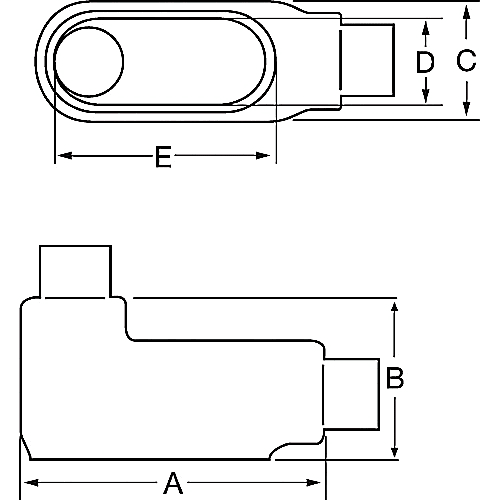

PVC Coated Conduit Body, LB Shape, Form 7, Size 3/4 Inch/21 Metric, Aluminum, Dark Gray Notes: Dimensional values are of uncoated conduit bodies.; Available in dark gray, white and light blue. Custom colors are also available upon request. Please contact Technical Services-888-862-3289 - Features: Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover.; Ocal pressure-sealing sleeves on all threaded hubs.; Ocal conduit bodies are shipped with a cover and encapsulated stainless steel screws.; A minimum of .040 in. PVC coating is bonded to the exterior.; Bodies are designed with a flat back, allowing more cubic inch capacity. The flat back also keeps the body more stable during installation, requiring fewer conduit straps.; The conduit body and cover are double coated with a nominal .002 in. blue urethane on both the interior and exterior, before PVC coating is applied - Application: Provide openings for making splices and taps in conductors; Provide for access to conductors for maintenance and future system changes; Act as pull outlets for conductors being installed; Provide taps for branch conduit runs; Connect conduit sections; Make 90± bends in conduit runs - Certifications: CSA; UL
