Thomas & Betts Co - Ocal STG8-G 3 Inch Gray PVC Coated Zinc Threaded Knockout Grounding Insulated Conduit Hub
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 704508409067
Applications - Positively Bonds Conduit to Box or Enclosure
Catalog Number - STG8-G
Color - Gray
ERP_productname - TBCO STG8-G 3 OCAL STG8 GRAY
Packaging
1 ea
EAN
00704508409067
Part #
176952
Catalog #
STG8-G
Commercial reference
STG8-G
12-Digit UPC:
704508409067
Applications:
Positively Bonds Conduit to Box or Enclosure
Catalog Number:
STG8-G
Color:
Gray
ERP_productname:
TBCO STG8-G 3 OCAL STG8 GRAY
Family Brand Name:
Thomas & Betts (T&B)
Finish:
PVC Coated
Material:
Zinc
Size:
3 in
Sub Brand:
Ocal®
Trade Size:
3 Inch
Type:
Grounded
SoneparProductId:
SKU_US_58373584

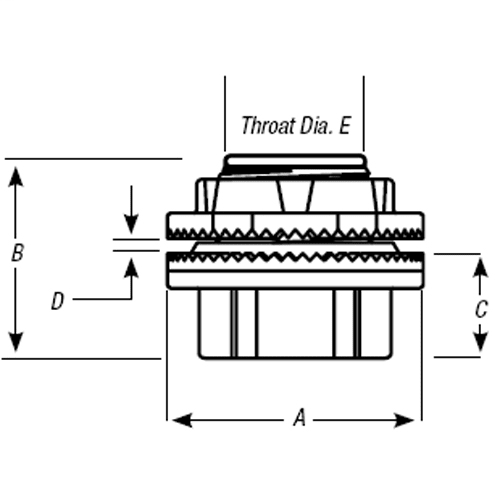

PVC Coated Zinc Grounded Hub with Thermoplastic Insulated Throat, Pipe Size 3 Inch/78 Metric, Overall Diameter 4.38 Inch/111.25 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 2.97 Inch/75.44 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray Features: Hexagonal body and locknut design.; Insulated throat and sharper and deeper teeth.; Innovative sealing ring and groove.; A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior.; Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied.; Pressure sealing sleeves to protect the connection. - Notes: Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289.; Dimensional values are of uncoated fittings.
