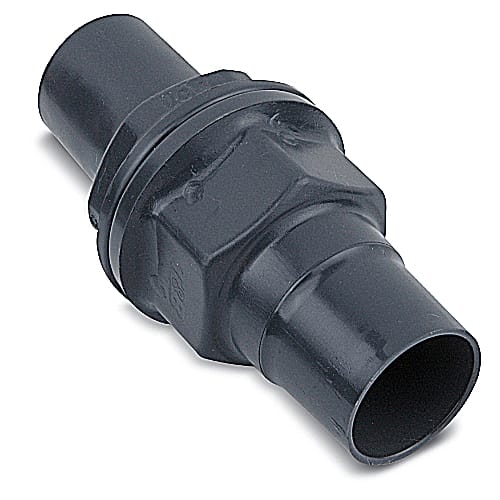

Thomas & Betts Co - Ocal UNF605-G 2 Inch Gray PVC Coated Steel Female to Female Conduit Union

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 704508413262

  • Applications - Used to Connect Conduit to Conduit, or to Provide a Means for Future Modification of the Conduit System

  • Catalog Number - UNF605-G

  • Color - Gray

  • ERP_productname - TBCO UNF605-G 2 OCAL UNF605 GRAY

Packaging

  • 1 ea

EAN

00704508413262

Part #

176977

Catalog #

UNF605-G

Commercial reference

UNF605-G

12-Digit UPC:

704508413262

Applications:

Used to Connect Conduit to Conduit, or to Provide a Means for Future Modification of the Conduit System

Catalog Number:

UNF605-G

Color:

Gray

ERP_productname:

TBCO UNF605-G 2 OCAL UNF605 GRAY

Family Brand Name:

ABB

Finish:

PVC Coated

Length:

2-1/2 Inch

Material:

Steel

Size:

2 in

Sub Brand:

Ocal®

Trade Size:

2 Inch

Type:

Type UNF

SoneparProductId:

SKU_US_57927088

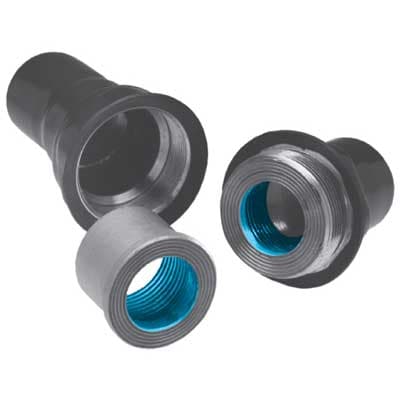

PVC Coated Explosion and Dust-Ignition Proof UNF Female Union, Pipe Size 2 Inch/53 Metric, 3 Piece, for Hazardous and Non-hazardous Locations, Overall Length 2.50 Inch/63.50 Millimeters, Overall Diameter 3.81 Inch/96.77 Millimeters, Electrogalvanized Steel, Gray Notes: Dimensional values are of uncoated fittings.; Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289. - Features: Pressure sealing sleeves to protect the connection.; A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior.; Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied. - Application: To connect conduit to conduit, or to provide a means for future modification of the conduit system.
