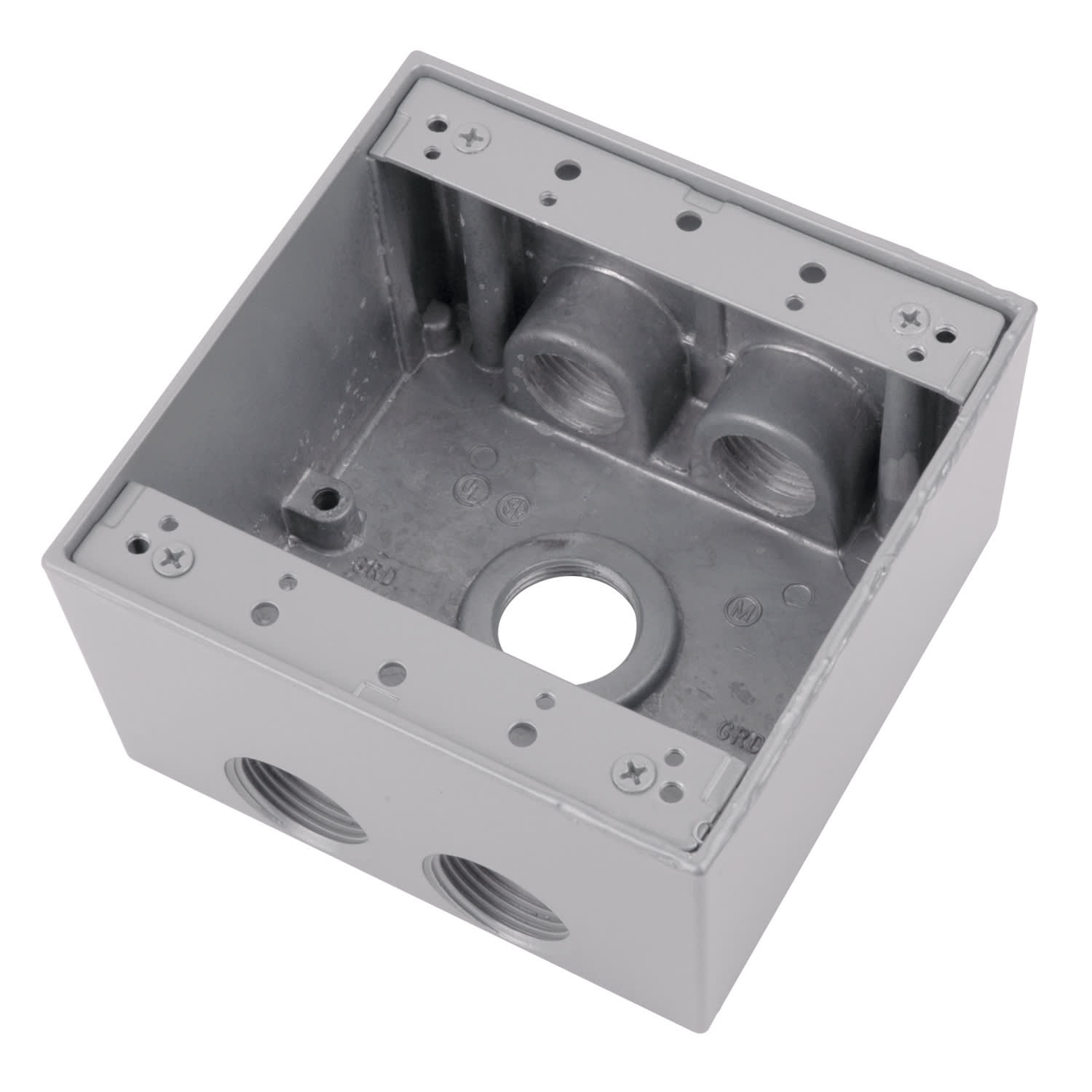

Thomas & Betts Co - Red Dot 2IHD5-1 2-Gang Weatherproof Metallic Device Box, (5) 1/2" Hubs, 2-5/8" Deep

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 042269393615

  • Applications - Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

  • Catalog Number - 2IHD5-1

  • Color - Silver

  • ERP_productname - RDOT 2IHD5-1 2G 5H BOX W/1/2 HUB

Packaging

  • 1 ea

EAN

00042269393615

Part #

176500

Catalog #

2IHD5-1

Commercial reference

2IHD5-1

12-Digit UPC:

042269393615

Applications:

Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

Catalog Number:

2IHD5-1

Color:

Silver

ERP_productname:

RDOT 2IHD5-1 2G 5H BOX W/1/2 HUB

Family Brand Name:

ABB

Finish:

Powder Coated

Heights:

5.3 Inch

Material:

Aluminum

Number of Gangs:

2 Gang

Sub Brand:

Red Dot®

Type:

Single, 5-Outlet, Rectangular

Widths:

5.2 in

SoneparProductId:

SKU_US_58108057

Two Gang Deep Universal Weatherproof Box, 40.3 Cubic Inches, Hub Size 1/2 Inch, Silver, Aluminum, 5 Outlets with 2 on Top and Bottom and 1 on Back Features: Clean cover edges provide good gasket sealing.; Clear UL and cubic content markings speed approval by inspectors; Securely fastened mounting plates reduce costly call backs; Convenient mounting lugs for a variety of mounting methods; Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance; Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.; Precision cast and machined surfaces permit safer wire pulling. - Notes: Rain tight when used with appropriate Red Dot covers. - Application: Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations; Junction box for branch conduits; Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices - Certifications: UL
