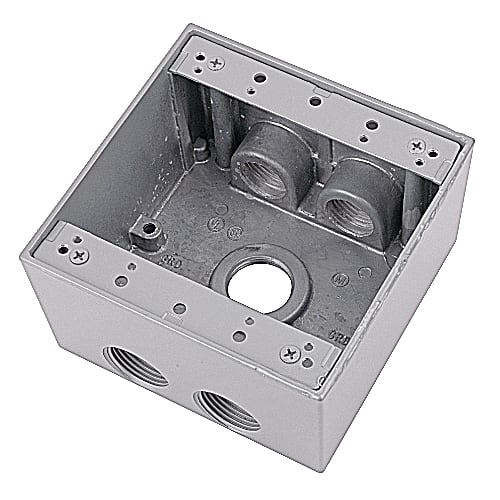

Thomas & Betts Co - Red Dot 2IHD5-3 2-Gang Weatherproof Metallic Device Box, (5) 1" Hubs, 2-5/8" Deep

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 042269393660

  • Applications - Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

  • Catalog Number - 2IHD5-3

  • Color - Silver

  • ERP_productname - RDOT 2IHD5-3 2G RT BOX 5 1IN HUBS

Packaging

  • 1 ea

EAN

05414363936152

Part #

159750

Catalog #

2IHD5-3

Commercial reference

2IHD5-3

12-Digit UPC:

042269393660

Applications:

Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

Catalog Number:

2IHD5-3

Color:

Silver

ERP_productname:

RDOT 2IHD5-3 2G RT BOX 5 1IN HUBS

Family Brand Name:

ABB

Finish:

Powder Coated

Heights:

5-1/4 Inch

Material:

Aluminum

Mounting Type:

Flush

Number of Gangs:

2 Gang

Sub Brand:

Red Dot®

Type:

Single, 1-Inlet, 5-Outlet, Square, Universal

Widths:

4-3/4 in

SoneparProductId:

SKU_US_57985468

Two Gang Deep Universal Weatherproof Box, 36 Cubic Inches, Hub Size 1 Inch, Silver, Aluminum, 5 Outlets with 2 on Top and Bottom and 1 on Back Features: Convenient mounting lugs for a variety of mounting methods; Securely fastened mounting plates reduce costly call backs; Clean cover edges provide good gasket sealing.; Clear UL and cubic content markings speed approval by inspectors; Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance; Precision cast and machined surfaces permit safer wire pulling.; Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices. - Application: Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations; Junction box for branch conduits; Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices - Certifications: UL - Notes: Rain tight when used with appropriate Red Dot covers.
