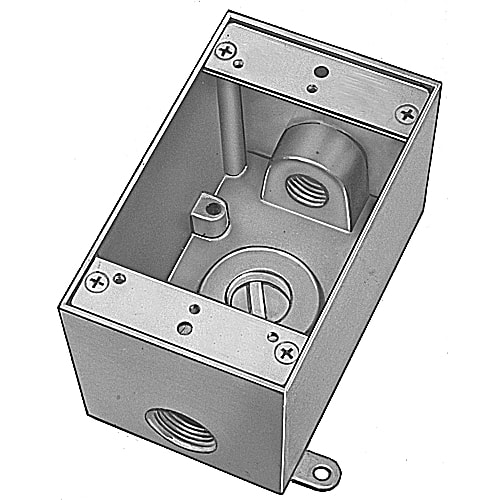

Thomas & Betts Co - Red Dot DIH3-1-LM Silver Die-Cast Aluminum 3-Hole 1-Gang 1/2 Inch Weatherproof Box

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 042269810204

  • Applications - Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

  • Catalog Number - DIH3-1-LM

  • Color - Silver

  • Depths - 2 Inch

Packaging

  • 1 ea

EAN

00042269810204

Part #

194469

Catalog #

DIH3-1-LM

Commercial reference

DIH3-1-LM

12-Digit UPC:

042269810204

Applications:

Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

Catalog Number:

DIH3-1-LM

Color:

Silver

Depths:

2 Inch

ERP_productname:

RDOT DIH3-1-LM SHRNK-WRP RECT 3 HOLE SNGL GNG

Family Brand Name:

ABB

Finish:

Powder Coated

Heights:

6.8 Inch

Length:

4-9/16 Inch

Material:

Aluminum

Number of Gangs:

1 Gang

Sub Brand:

Red Dot®

Type:

Universal, 3-Outlet, Rectangular

Widths:

2-13/16 in

SoneparProductId:

SKU_US_59079741

Single Gang Universal Weatherproof Box, 19.0 Cubic Inches, Hub Size 1/2 Inch, Silver, Aluminum, 3 Outlets, One on Top, Bottom, and Back, with Mounting Lugs, Pack of 10 Application: Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations; Junction box for branch conduits; Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices - Features: Clean cover edges provide good gasket sealing.; Clear UL and cubic content markings speed approval by inspectors; Securely fastened mounting plates reduce costly call backs; Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance; Precision cast and machined surfaces permit safer wire pulling.; Convenient mounting lugs for a variety of mounting methods; Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices. - Notes: Rain tight when used with appropriate Red Dot covers. - Certifications: UL
