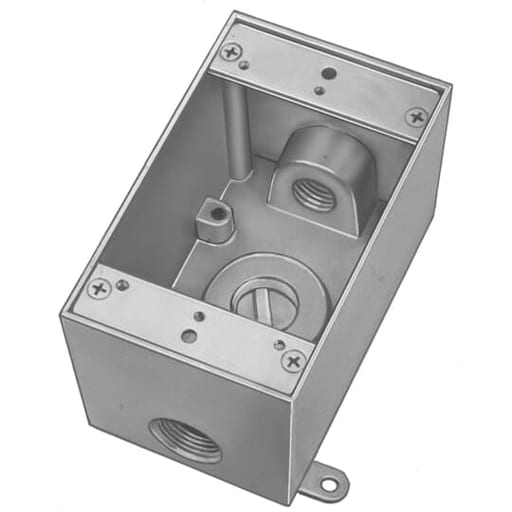

Thomas & Betts Co - Red Dot DIH3-2-LM Silver Die-Cast Aluminum 3-Hole 1-Gang 3/4 Inch Weatherproof Box

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 042269810235

  • Applications - Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

  • Catalog Number - DIH3-2-LM

  • Color - Silver

  • ERP_productname - RDOT DIH3-2-LM SHRNK-WRP RECT 3 HOLE SNGL GNG

Packaging

  • 1 ea

EAN

05414363936640

Part #

112567

Catalog #

DIH3-2-LM

Commercial reference

DIH3-2-LM

12-Digit UPC:

042269810235

Applications:

Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

Catalog Number:

DIH3-2-LM

Color:

Silver

ERP_productname:

RDOT DIH3-2-LM SHRNK-WRP RECT 3 HOLE SNGL GNG

Family Brand Name:

Thomas & Betts (T&B)

Finish:

Powder Coated

Heights:

6-1/2 Inch

Material:

Aluminum

Number of Gangs:

1 Gang

Sub Brand:

Red Dot®, Shrnk-Wrp

Type:

3-Outlet, Rectangular, Universal

Widths:

6 in

SoneparProductId:

SKU_US_59079687

Single Gang Universal Weatherproof Box, 18.3 Cubic Inches, Hub Size 3/4 Inch, Silver, Aluminum, 3 Outlets, One on Top, Bottom, and Back, with Mounting Lugs, Pack of 10 Features: Precision cast and machined surfaces permit safer wire pulling.; Securely fastened mounting plates reduce costly call backs; Convenient mounting lugs for a variety of mounting methods; Clear UL and cubic content markings speed approval by inspectors; Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.; Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance; Clean cover edges provide good gasket sealing. - Application: Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations; Junction box for branch conduits; Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices - Certifications: UL - Notes: Rain tight when used with appropriate Red Dot covers.
