Thomas & Betts Co - Red Dot IH3-1-LM 1-Gang Weatherproof Metallic Device Box, (3) 1/2" Hubs, 2" Deep

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 042269392151

  • Applications - Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

  • Catalog Number - IH3-1-LM

  • Color - Silver Gray

  • Depths - 50.8 mm

Packaging

  • 1 ea

EAN

05414363153153

Part #

158349

Catalog #

IH3-1-LM

Commercial reference

IH3-1-LM

12-Digit UPC:

042269392151

Applications:

Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

Catalog Number:

IH3-1-LM

Color:

Silver Gray

Depths:

50.8 mm

ERP_productname:

RDOT IH3-1-LM 1G RT BOX 3 1/2HUBS

Family Brand Name:

ABB

Heights:

10-3/4 Inch

Material:

Aluminum

Mounting Type:

Screw, Wall, Ceiling

Number of Gangs:

1 Gang

Type:

3-Outlet, 3-Inlet, Rectangular, 3-Hole

Widths:

71.4 mm

SoneparProductId:

SKU_US_25313910

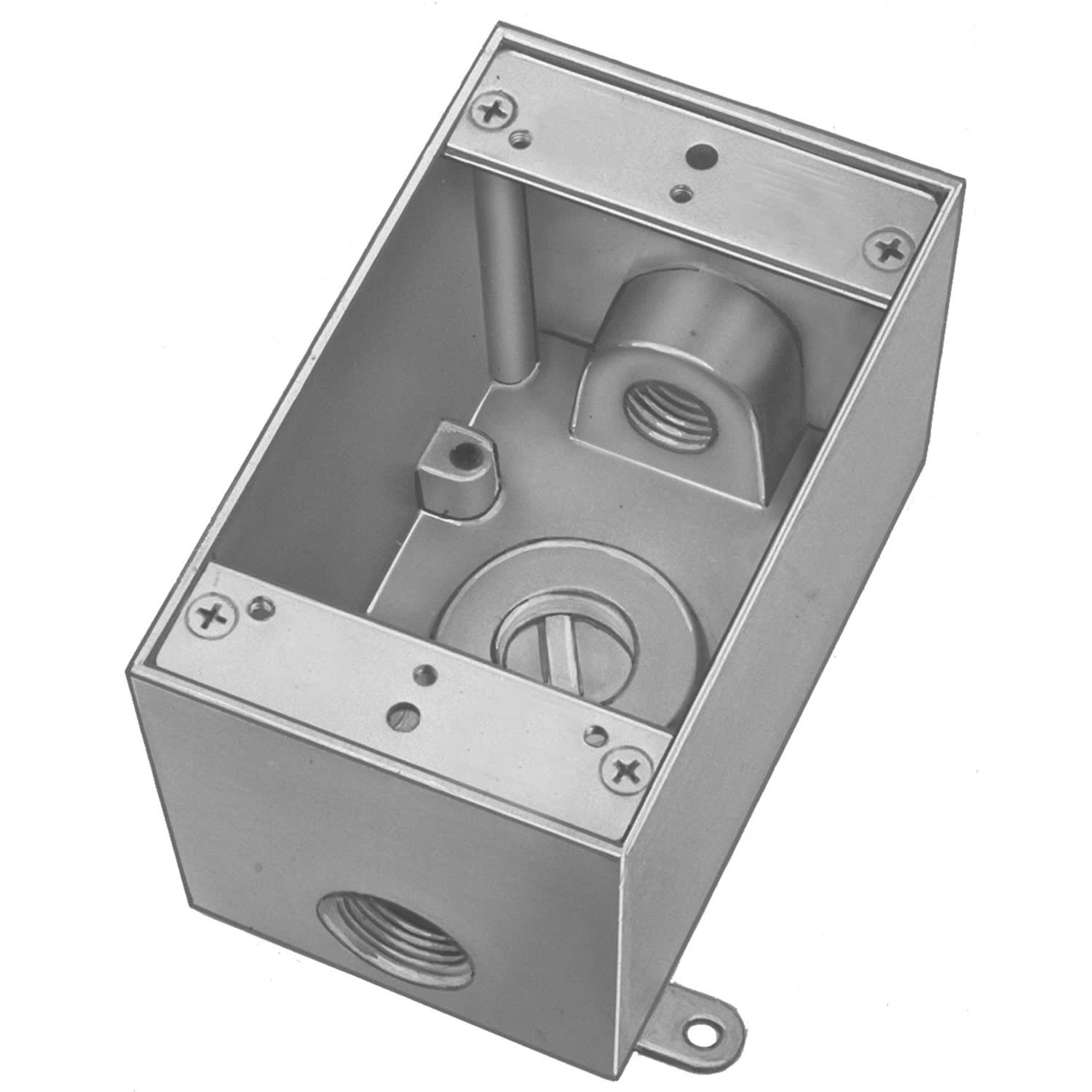

Single Gang Universal Weatherproof Box, 18.3 Cubic Inches, Hub Size 1/2 Inch, Silver, Aluminum, 3 Outlets, One on Top, Bottom, and Back, with Mounting Lugs Features: Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.; Clear UL and cubic content markings speed approval by inspectors; Convenient mounting lugs for a variety of mounting methods; Clean cover edges provide good gasket sealing.; Precision cast and machined surfaces permit safer wire pulling.; Securely fastened mounting plates reduce costly call backs; Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance - Notes: Rain tight when used with appropriate Red Dot covers. - Application: Junction box for branch conduits; Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices; Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations - Certifications: UL
