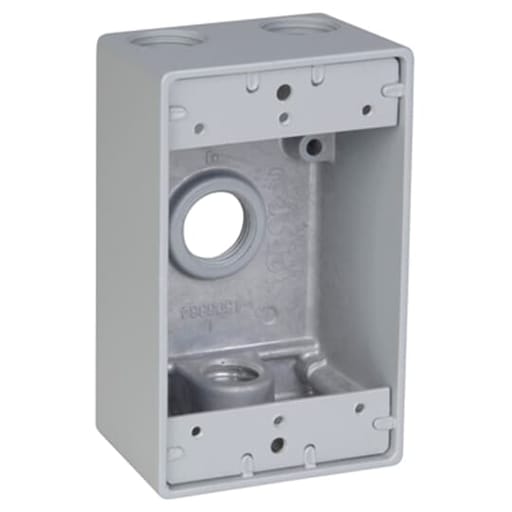

Thomas & Betts Co - Red Dot IH4-1 1/2 Inch Dry-Tite 4-Hole Device Box

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 042269392502

  • Applications - Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

  • Catalog Number - IH4-1

  • Color - Silver

  • Depths - 50.8 mm

Packaging

  • 1 ea

EAN

00042269392502

Part #

115157

Catalog #

IH4-1

Commercial reference

IH4-1

12-Digit UPC:

042269392502

Applications:

Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

Catalog Number:

IH4-1

Color:

Silver

Depths:

50.8 mm

ERP_productname:

RDOT IH4-1 1/2 INCH D-T DEV BX 4 HOLE

Family Brand Name:

ABB

Finish:

Anodized

Heights:

10-1/4 Inch

Material:

Aluminum

Mounting Type:

Wall/Ceiling

Number of Gangs:

1 Gang

Sub Brand:

Dry-Tite®, Red Dot®

Type:

4-Inlet, Rectangular

Widths:

71.4 mm

SoneparProductId:

SKU_US_58877745

Single Gang Universal Weatherproof Box, 19.0 Cubic Inches, Hub Size 1/2 Inch, Silver, Aluminum, 4 Outlets, Two on Top, and One on Bottom and Back Notes: Rain tight when used with appropriate Red Dot covers. - Features: Clean cover edges provide good gasket sealing.; Convenient mounting lugs for a variety of mounting methods; Securely fastened mounting plates reduce costly call backs; Clear UL and cubic content markings speed approval by inspectors; Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance; Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.; Precision cast and machined surfaces permit safer wire pulling. - Application: Junction box for branch conduits; Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations; Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices - Certifications: UL
