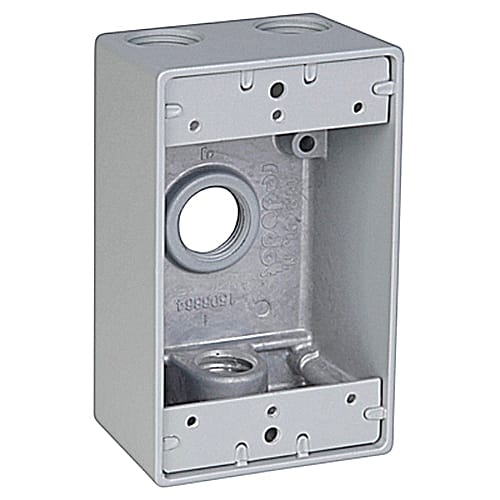

Thomas & Betts Co - Red Dot IH4-1-LM 1-Gang Weatherproof Metallic Device Box, (4) 1/2" Hubs, 2" Deep

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 042269392557

  • Applications - Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

  • Catalog Number - IH4-1-LM

  • Color - Silver

  • Depths - 50.8 mm

Packaging

  • 1 ea

EAN

05414363936503

Part #

124043

Catalog #

IH4-1-LM

Commercial reference

IH4-1-LM

12-Digit UPC:

042269392557

Applications:

Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

Catalog Number:

IH4-1-LM

Color:

Silver

Depths:

50.8 mm

ERP_productname:

RDOT IH4-1-LM 1G RT BOX 4 1/2HUBS

Family Brand Name:

ABB

Finish:

Anodized

Heights:

10-1/4 Inch

Material:

Aluminum

Mounting Type:

Wall/Ceiling

Number of Gangs:

1 Gang

Sub Brand:

Dry-Tite®, Red Dot®

Type:

4-Inlet, 4-Outlet, Rectangular

Widths:

71.4 mm

SoneparProductId:

SKU_US_25314103

Single Gang Universal Weatherproof Box, 17 Cubic Inches, Hub Size 1/2 Inch, Silver, Aluminum, 4 Outlets, Two on Top, and One Bottom and Back, with Mounting Lugs Application: Junction box for branch conduits; Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices; Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations - Features: Clear UL and cubic content markings speed approval by inspectors; Clean cover edges provide good gasket sealing.; Convenient mounting lugs for a variety of mounting methods; Precision cast and machined surfaces permit safer wire pulling.; Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance; Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.; Securely fastened mounting plates reduce costly call backs - Certifications: UL - Notes: Rain tight when used with appropriate Red Dot covers.
