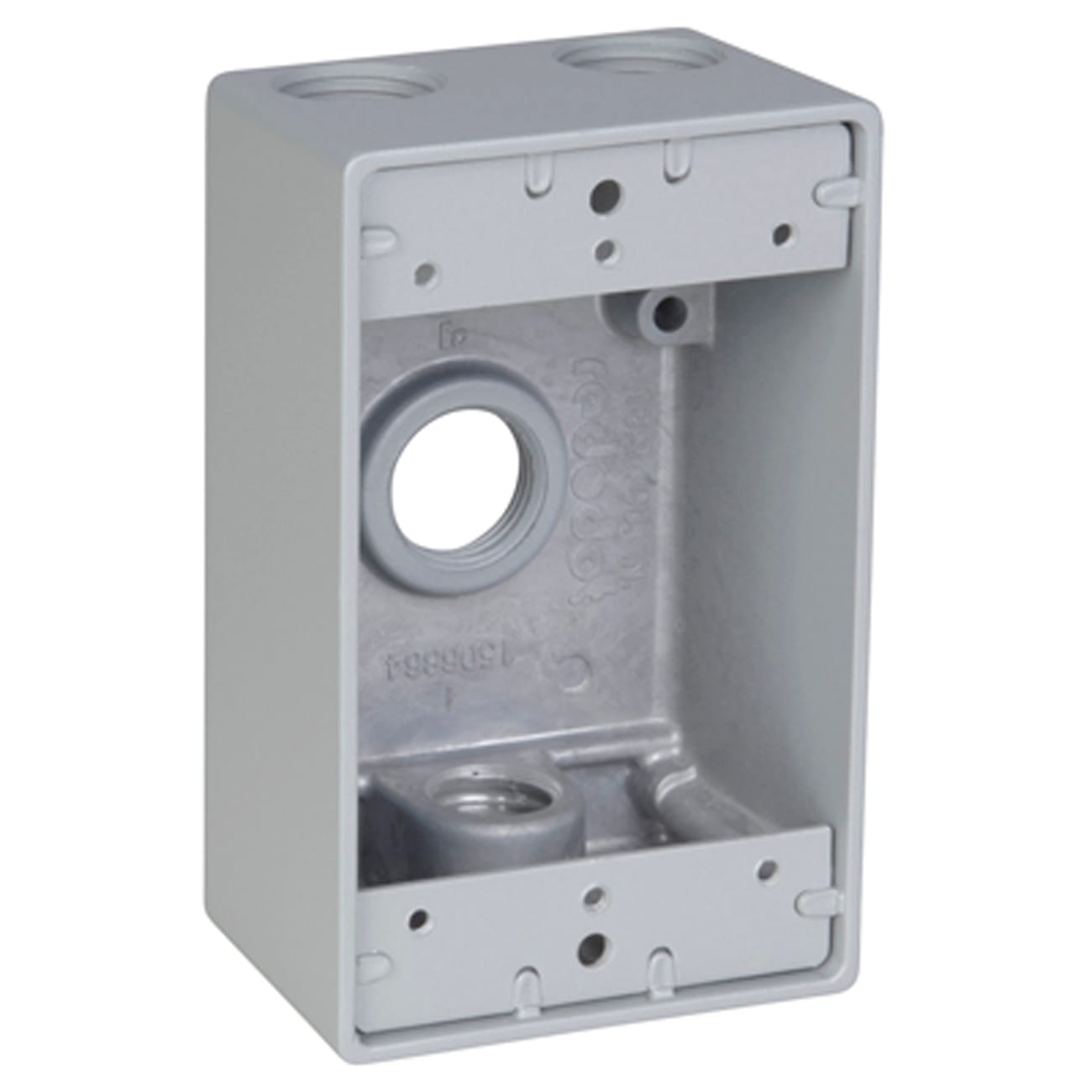

Thomas & Betts Co - Red Dot IH4-2-LM 1-Gang Weatherproof Metallic Device Box, (4) 3/4" Hubs, 2" Deep

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 042269392656

  • Applications - Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

  • Catalog Number - IH4-2-LM

  • Color - Gray/Silver

  • Depths - 50.8 mm

Packaging

  • 1 ea

EAN

05414363936329

Part #

159711

Catalog #

IH4-2-LM

Commercial reference

IH4-2-LM

12-Digit UPC:

042269392656

Applications:

Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

Catalog Number:

IH4-2-LM

Color:

Gray/Silver

Depths:

50.8 mm

ERP_productname:

RDOT IH4-2-LM 1G RT BOX 4 3/4HUBS

Family Brand Name:

Thomas & Betts (T&B)

Finish:

Powder Coated

Heights:

10.6 Inch

Length:

115.9 mm

Material:

Aluminum

Mounting Type:

Wall/Ceiling/Screw

Number of Gangs:

1 Gang

Sub Brand:

Red Dot®

Type:

4-Outlet, 4-Inlet, Threaded, Rectangular

Widths:

71.4 mm

SoneparProductId:

SKU_US_58090296

Single Gang Universal Weatherproof Box, 18.3 Cubic Inches, Hub Size 3/4 Inch, Silver, Aluminum, 4 Outlets, Two on Top, and One on Bottom and Back, with Mounting Lugs Features: Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.; Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance; Precision cast and machined surfaces permit safer wire pulling.; Convenient mounting lugs for a variety of mounting methods; Clean cover edges provide good gasket sealing.; Securely fastened mounting plates reduce costly call backs; Clear UL and cubic content markings speed approval by inspectors - Certifications: UL - Application: Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations; Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices; Junction box for branch conduits - Notes: Rain tight when used with appropriate Red Dot covers.
