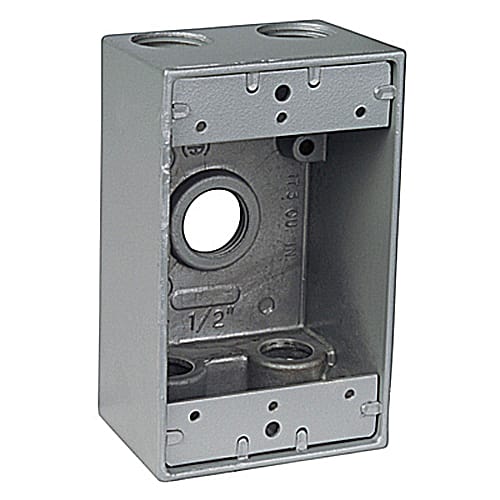

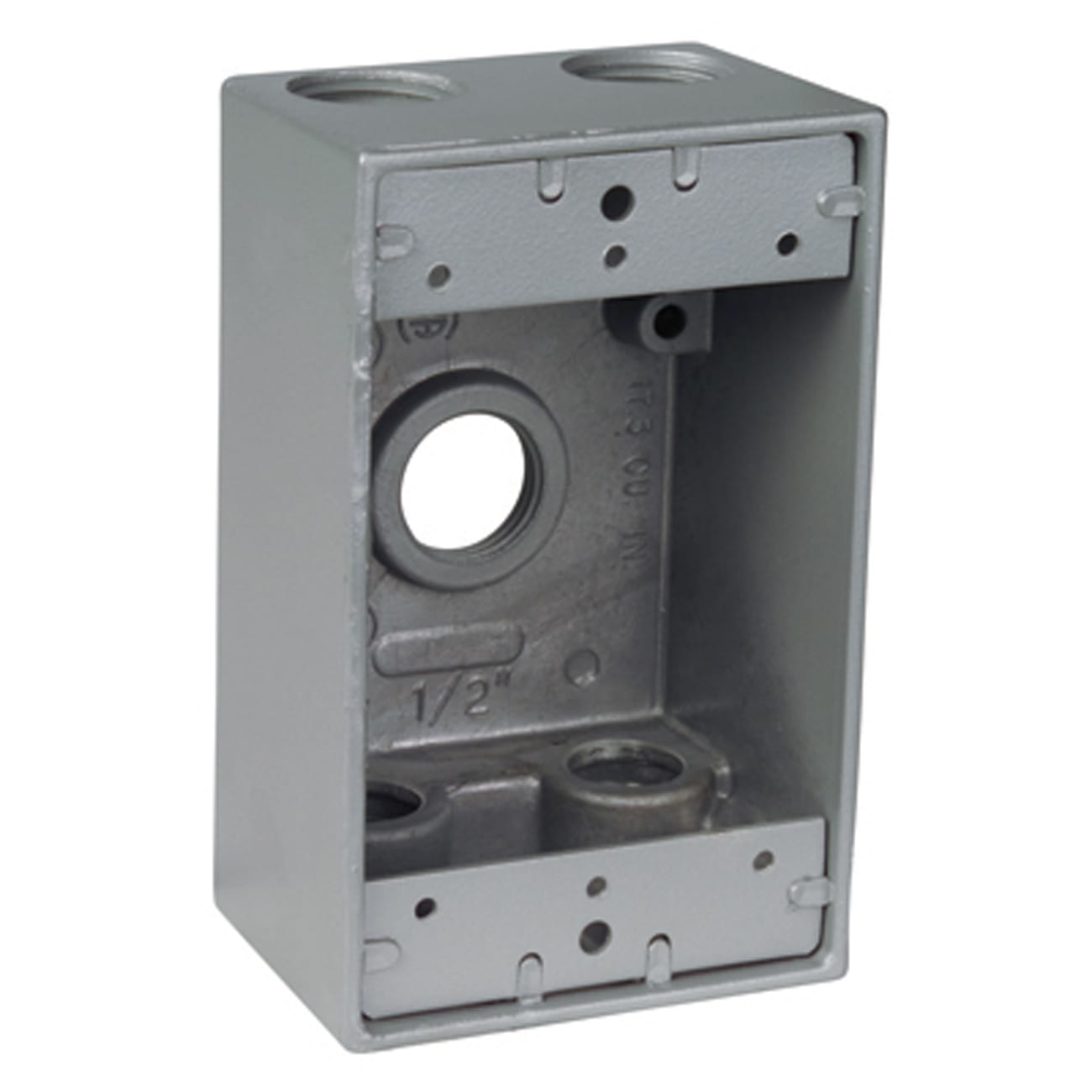

Thomas & Betts Co - Red Dot IH5-1-LM 1-Gang Weatherproof Metallic Device Box, (5) 1/2" Hubs, 2" Deep

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 042269393158

  • Applications - Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

  • Catalog Number - IH5-1-LM

  • Color - Silver

  • ERP_productname - RDOT IH5-1-LM 1G RT BOX 5 1/2HUBS

Packaging

  • 1 ea

EAN

05414363936671

Part #

176540

Catalog #

IH5-1-LM

Commercial reference

IH5-1-LM

12-Digit UPC:

042269393158

Applications:

Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

Catalog Number:

IH5-1-LM

Color:

Silver

ERP_productname:

RDOT IH5-1-LM 1G RT BOX 5 1/2HUBS

Family Brand Name:

Thomas & Betts (T&B)

Finish:

Powder Coated

Heights:

5.3 Inch

Material:

Aluminum

Number of Gangs:

1 Gang

Sub Brand:

Red Dot®

Type:

5-Outlet, Universal

Widths:

10.9 in

SoneparProductId:

SKU_US_58089847

Single Gang Universal Weatherproof Box, 19.0 Cubic Inches, Hub Size 1/2 Inch, Silver, Aluminum, 5 Outlets, Two on Top, and Bottom and One on Back, with Mounting Lugs Features: Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.; Precision cast and machined surfaces permit safer wire pulling.; Clean cover edges provide good gasket sealing.; Clear UL and cubic content markings speed approval by inspectors; Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance; Securely fastened mounting plates reduce costly call backs; Convenient mounting lugs for a variety of mounting methods - Notes: Rain tight when used with appropriate Red Dot covers. - Application: Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations; Junction box for branch conduits; Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices - Certifications: UL
