Thomas & Betts Co - Red Dot IHD3-1 1-Gang Weatherproof Metallic Device Box, (3) 1/2" Hubs, 2-5/8" Deep

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 042269393271

  • Applications - Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

  • Catalog Number - IHD3-1

  • Color - Silver

  • ERP_productname - RDOT IHD3-1 1G RT BOX W/3 1/2 HUBS

Packaging

  • 1 ea

EAN

05414363936527

Part #

159727

Catalog #

IHD3-1

Commercial reference

IHD3-1

12-Digit UPC:

042269393271

Applications:

Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

Catalog Number:

IHD3-1

Color:

Silver

ERP_productname:

RDOT IHD3-1 1G RT BOX W/3 1/2 HUBS

Family Brand Name:

ABB

Finish:

Powder Coated

Material:

Aluminum

Mounting Type:

Hollow Wall

Number of Gangs:

1 Gang

Sub Brand:

Red Dot®

Type:

Single, 3-Outlet, Rectangular, Deep, Universal

SoneparProductId:

SKU_US_58925392

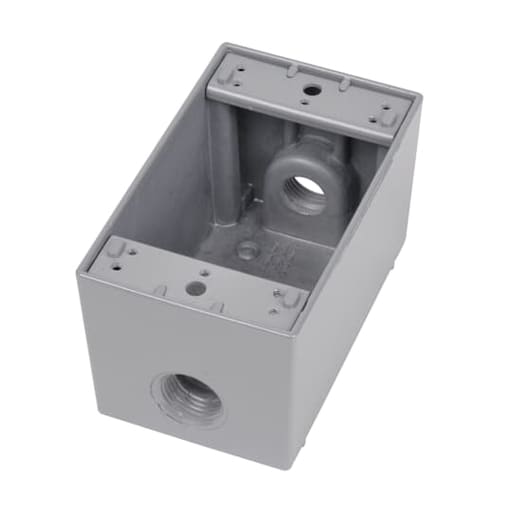

Single Gang Deep Universal Weatherproof Box, 25.5 Cubic Inches, 2-5/8 Inches Deep, Hub Size 1/2 Inch, Silver, Aluminum, 3 Outlets, One on Top, Bottom, and Back Application: Junction box for branch conduits; Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations; Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices - Features: Clean cover edges provide good gasket sealing.; Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance; Clear UL and cubic content markings speed approval by inspectors; Convenient mounting lugs for a variety of mounting methods; Securely fastened mounting plates reduce costly call backs; Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.; Precision cast and machined surfaces permit safer wire pulling. - Certifications: UL - Notes: Rain tight when used with appropriate Red Dot covers.
