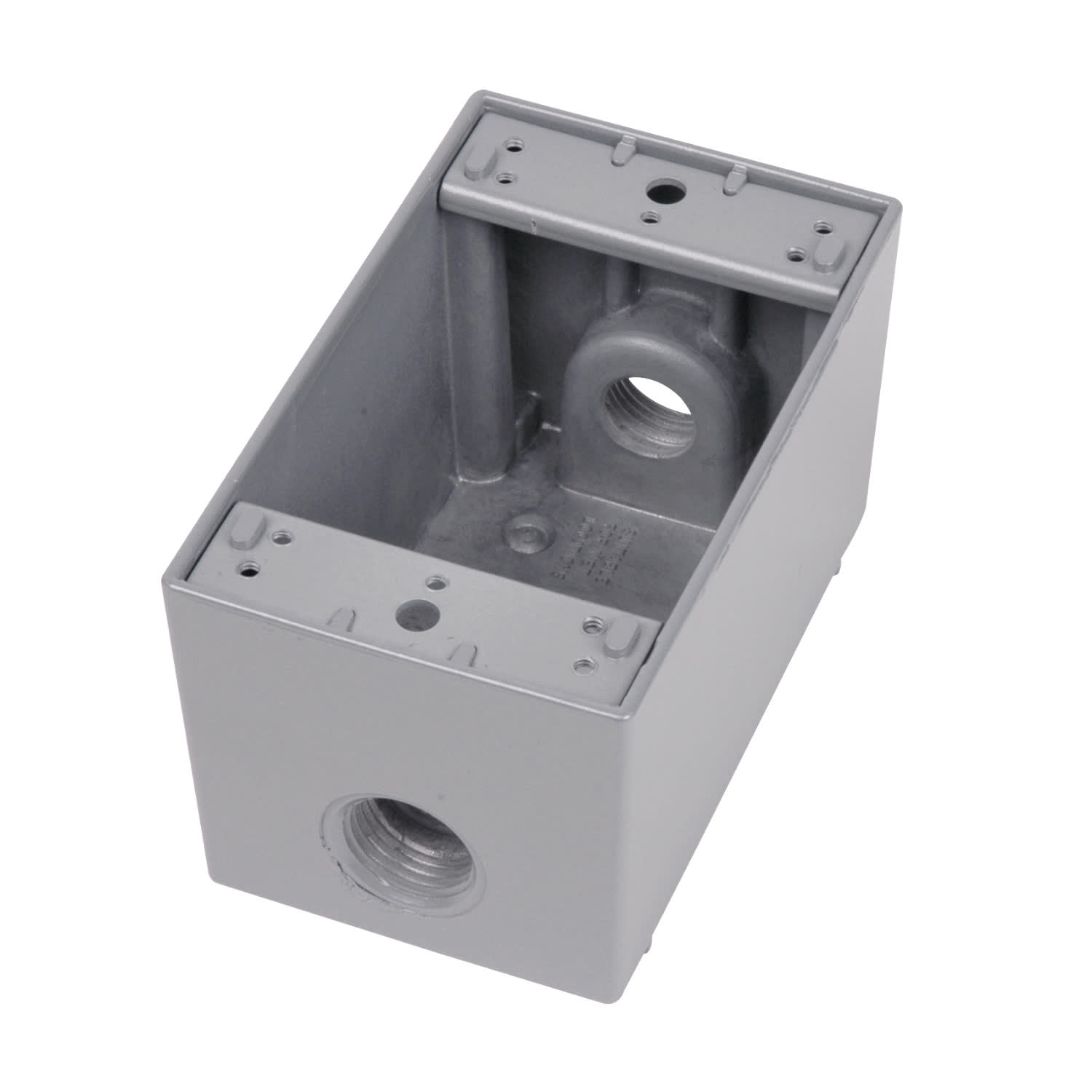

Thomas & Betts Co - Red Dot IHD3-3 1-Gang Weatherproof Metallic Device Box, (3) 1" Hubs, 2-5/8" Deep

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 042269393325

  • Applications - For Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

  • Catalog Number - IHD3-3

  • Color - Silver

  • Depths - 2-5/8 Inch

Packaging

  • 1 ea

EAN

05414363936299

Part #

159739

Catalog #

IHD3-3

Commercial reference

IHD3-3

12-Digit UPC:

042269393325

Applications:

For Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations

Catalog Number:

IHD3-3

Color:

Silver

Depths:

2-5/8 Inch

ERP_productname:

RDOT IHD3-3 1G RT BOX W/3 1IN HUBS

Family Brand Name:

ABB

Finish:

Powder Coated

Length:

4-9/16 Inch

Material:

Aluminum

Mounting Type:

Screw

Number of Gangs:

1 Gang

Sub Brand:

Red Dot®

Type:

Universal, Rectangular

Widths:

2-13/16 in

SoneparProductId:

SKU_US_58878540

Single Gang Deep Universal Weatherproof Box, 23 Cubic Inches, Hub Size 1 Inch, Silver, Aluminum, 3 Outlets, One on Top, Bottom, and Back Application: Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices; Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations; Junction box for branch conduits - Features: Clear UL and cubic content markings speed approval by inspectors; Convenient mounting lugs for a variety of mounting methods; Precision cast and machined surfaces permit safer wire pulling.; Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance; Clean cover edges provide good gasket sealing.; Securely fastened mounting plates reduce costly call backs; Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices. - Notes: Rain tight when used with appropriate Red Dot covers. - Certifications: UL
