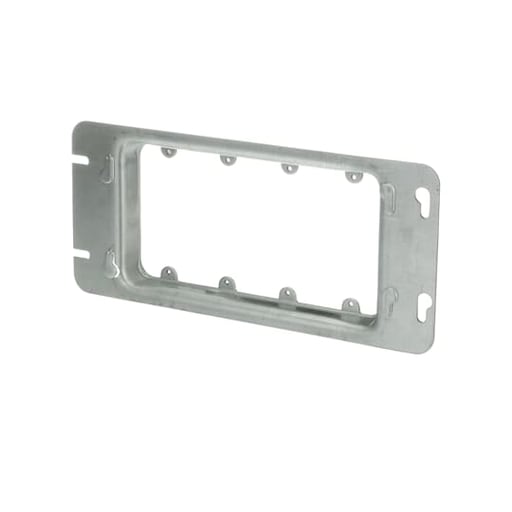

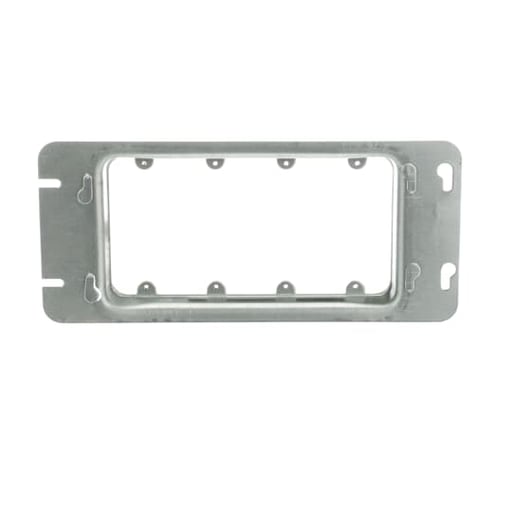

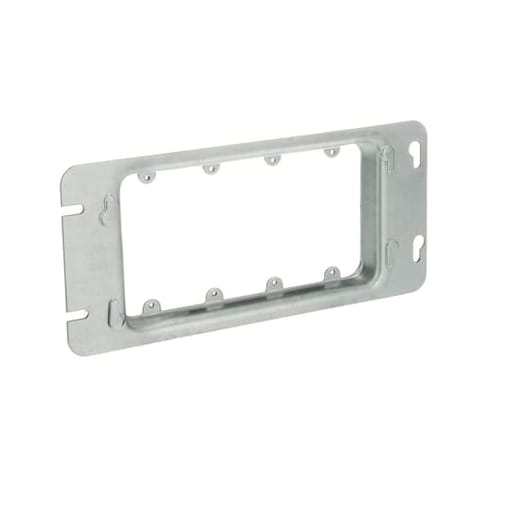

Thomas & Betts Co - Steel City 4GC Four Gang Steel Gang Box Cover, 10-5/8" x 4-11/16", Raised 15/16" for Plaster, 18.3 cu.in.
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785991130355
Applications - The cover will fit the next smaller size box
Catalog Number - 4 GC
Depths - 13/16 Inch
ERP_productname - STLC 4GC STL CVR, 4 GANG, 13.5CU-IN
Packaging
1 ea
EAN
00785991130355
Part #
281239
Catalog #
4GC
Commercial reference
4GC
12-Digit UPC:
785991130355
Applications:
The cover will fit the next smaller size box
Catalog Number:
4 GC
Depths:
13/16 Inch
ERP_productname:
STLC 4GC STL CVR, 4 GANG, 13.5CU-IN
Family Brand Name:
ABB
Finish:
Galvanized
Length:
10-5/8 Inch
Material:
Steel
Number of Gangs:
4 Gang
Size:
10-5/8 in
Type:
4-Outlet
Widths:
4-11/16 in
SoneparProductId:
SKU_US_25744919
Four Gang Box Cover, 13.5 Cubic Inches, 10-5/8 Inches Long x 4-11/16 Inches Wide x 13/16 Inches Raised for Plaster, Galvanized Steel, Holes between Gangs are Spaced on 13/16 Inch Centers, Tapped Holes in Ears, Spaced on 3-9/32 Inches Centers to Accommodate All Standard Receptacles and Switches, Furnished with Extra Plugged Screw Holes, if these Screw Holes are Used, the Cover will fit the Next Smaller Size Box Features: Furnished with extra plugged screw holes. If these screw holes are used, the cover will fit the next smaller size box.; Tapped holes in ears are spaced 3-9/32\" to accommodate all standard receptacles and switches.; Holes between gangs are spaced on 1-3/16\" centers.
