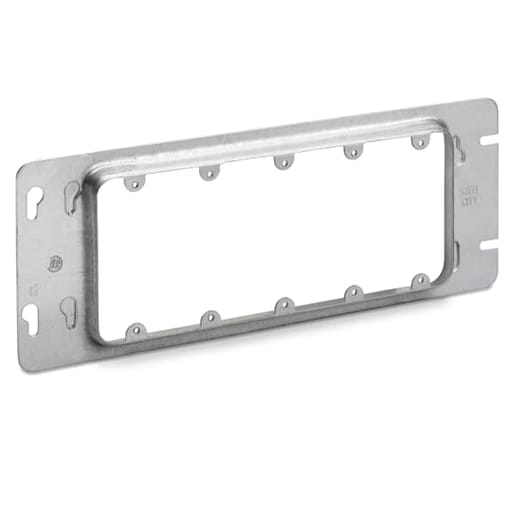

Thomas & Betts Co - Steel City 5-GC 5-Gang Steel Raised Box
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785991131208
Applications - The cover will fit the next smaller size box
Catalog Number - 5 GC
Color - Silver
Depths - 13/16 Inch
Packaging
1 ea
EAN
00785991131208
Part #
281240
Catalog #
5GC
Commercial reference
5GC
12-Digit UPC:
785991131208
Applications:
The cover will fit the next smaller size box
Catalog Number:
5 GC
Color:
Silver
Depths:
13/16 Inch
ERP_productname:
CARB 5GC 5 GANG BX CVR,13/16 RSD,23.0 CU-IN
Family Brand Name:
ABB
Finish:
Galvanized
Length:
12-7/16 Inch
Material:
Steel
Number of Gangs:
5 Gang
Size:
12-7/16 in
Type:
Outlet Box Covers
Widths:
4-11/16 in
SoneparProductId:
SKU_US_25741714
Five Gang Box Cover, 23 Cubic Inches, 12-7/16 Inches Long x 4-11/16 Inches Wide x 13/16 Inches Raised for Plaster, Galvanized Steel, Holes between Gangs are Spaced on 13/16 Inch Centers, Tapped Holes in Ears, Spaced on 3-9/32 Inches Centers to Accommodate All Standard Receptacles and Switches, Furnished with Extra Plugged Screw Holes, if these Screw Holes are Used, the Cover will fit the Next Smaller Size Box Features: Furnished with extra plugged screw holes. If these screw holes are used, the cover will fit the next smaller size box.; Tapped holes in ears are spaced 3-9/32\" to accommodate all standard receptacles and switches.; Holes between gangs are spaced on 1-3/16\" centers.
