Thomas & Betts Co - Thomas & Betts 10RC-10 Vinyl-Insulated Ring Terminal - #12-10, #10bolt
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210800424
Catalog Number - 10RC-10
Color - Yellow
Conductor Size - 12-10 AWG
ERP_productname - TBCO 10RC-10 INS VINYL RING TERM 12-10 #10 YELLOW
Packaging
50 ea
EAN
05414363136194
Part #
210096
Catalog #
10RC-10
Commercial reference
10RC-10
12-Digit UPC:
786210800424
Catalog Number:
10RC-10
Color:
Yellow
Conductor Size:
12-10 AWG
ERP_productname:
TBCO 10RC-10 INS VINYL RING TERM 12-10 #10 YELLOW
Family Brand Name:
ABB
Finish:
Tin Plated
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_25427887

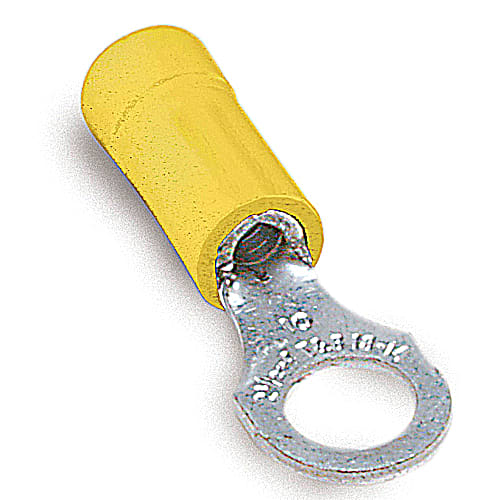

Vinyl-Insulated Ring Terminal, Length 1.06 Inches, Width .31 Inches, Maximum Insulation .210, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated Certifications: CSA; UL - Features: These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value.
