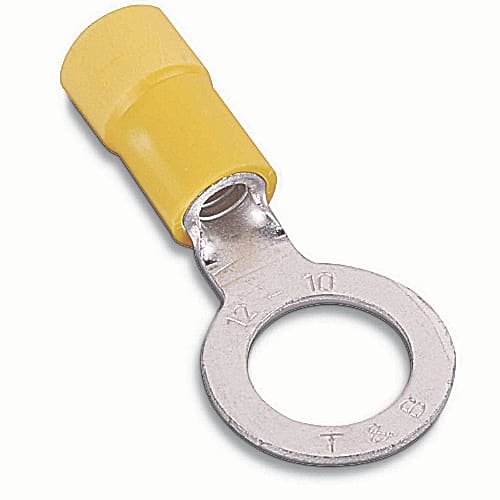

Thomas & Betts Co - Thomas & Betts 10RC-10X 12 to 10 AWG #10 Stud Yellow Electrotinned Copper Expanded Entry Vinyl Insulated Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210800455
Catalog Number - 10RC-10X
Color - Yellow
Conductor Size - 12-10 AWG
ERP_productname - ABB 10RC-10X EXP INS VNYL RNG TRM, 12-10, NO10
Packaging
1 ea
EAN
05414363935780
Part #
337355
Catalog #
10RC-10X
Commercial reference
10RC-10X
12-Digit UPC:
786210800455
Catalog Number:
10RC-10X
Color:
Yellow
Conductor Size:
12-10 AWG
ERP_productname:
ABB 10RC-10X EXP INS VNYL RNG TRM, 12-10, NO10
Family Brand Name:
ABB
Finish:
Tin Plated
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_25982964
Expanded Vinyl-Insulated Ring Terminal, Length 1.06 Inches, Width .31 Inches, Maximum Insulation .250, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated Certifications: CSA; UL - Features: Catalog numbers ending with the suffix X indicate an expanded insulation grip. This means a wider wire entry to accommodate heavy wall insulation. Ring terminals won't fall free even if the mounting screw loosens.
