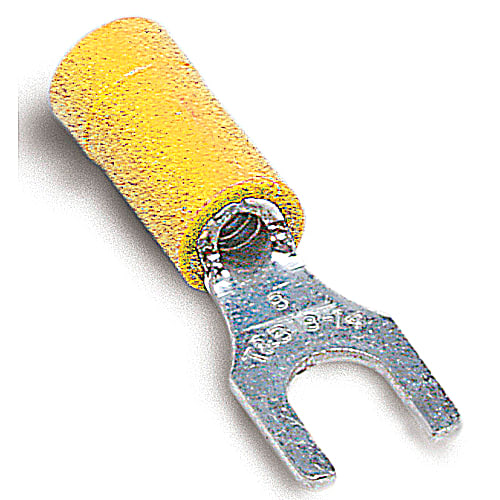

Thomas & Betts Co - Thomas & Betts 10RC-6F 12-10 AWG Wire Range #6 Bolt Hole Yellow Insulated Vinyl Fork Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210838199
Catalog Number - 10RC-6F
Color - Yellow
Conductor Size - 12-10 AWG
ERP_productname - CARB 10RC-6F INS VINL FORK TERM 12-10 BLT NO6 YE
Packaging
1 ea
EAN
05414363935704
Part #
281456
Catalog #
10RC-6F
Commercial reference
10RC-6F
12-Digit UPC:
786210838199
Catalog Number:
10RC-6F
Color:
Yellow
Conductor Size:
12-10 AWG
ERP_productname:
CARB 10RC-6F INS VINL FORK TERM 12-10 BLT NO6 YE
Family Brand Name:
ABB
Finish:
Tin Plated
Heights:
3.3 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Widths:
4.69 in
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_25535960
Vinyl-Insulated Fork Terminal, Length 1.09 Inches, Width .31 Inches, Maximum Insulation .210, Bolt Hole #6, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated Features: These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded. - Certifications: CSA; UL
