Thomas & Betts Co - Thomas & Betts 10RC-8F Vinyl-Insulated Fork Terminal - #12-10, #8bolt
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210800394
Catalog Number - 10RC-8F
Color - Yellow
Conductor Size - 12-10 AWG
ERP_productname - TBCO 10RC-8F INS VINYL FORK TERM 12-10 #8 YELLOW
Packaging
50 ea
EAN
05414363136330
Part #
210167
Catalog #
10RC-8F
Commercial reference
10RC-8F
12-Digit UPC:
786210800394
Catalog Number:
10RC-8F
Color:
Yellow
Conductor Size:
12-10 AWG
ERP_productname:
TBCO 10RC-8F INS VINYL FORK TERM 12-10 #8 YELLOW
Family Brand Name:
ABB
Finish:
Tin Plated
Heights:
8.8 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Widths:
9-1/2 in
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_25440853

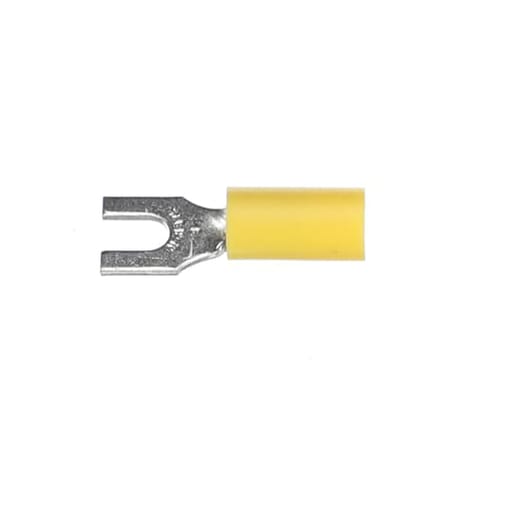

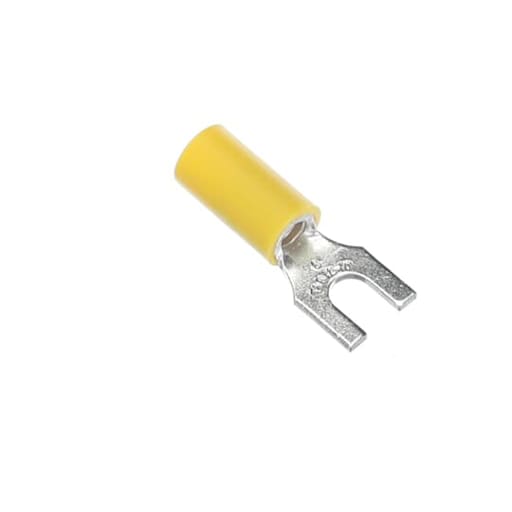

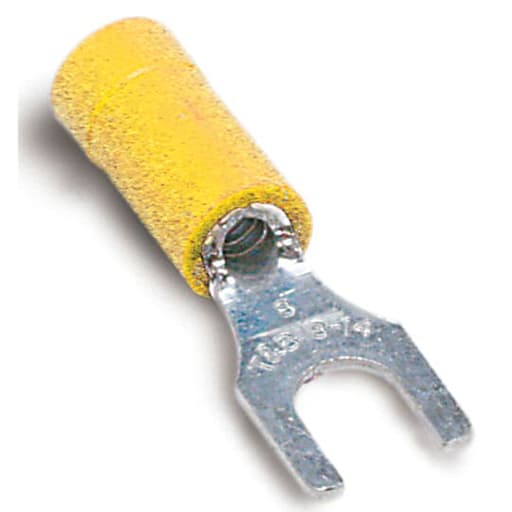

Vinyl-Insulated Fork Terminal, Length 1.09 Inches, Width .38 Inches, Maximum Insulation .210, Bolt Hole #8, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated Features: These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded. - Certifications: UL; CSA
