Thomas & Betts Co - Thomas & Betts 14RB-14F 18-14 AWG Wire Range 1/4 Inch Bolt Hole Blue Insulated Vinyl Fork Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210838205
Catalog Number - 14RB-14F
Color - Blue
Conductor Size - 18-14 AWG
ERP_productname - TBCO 14RB-14F INS VINYL FORK TERM, 18-14, 1/4, BL
Packaging
1 ea
EAN
05414363137931
Part #
197718
Catalog #
14RB-14F
Commercial reference
14RB-14F
12-Digit UPC:
786210838205
Catalog Number:
14RB-14F
Color:
Blue
Conductor Size:
18-14 AWG
ERP_productname:
TBCO 14RB-14F INS VINYL FORK TERM, 18-14, 1/4, BL
Family Brand Name:
ABB
Finish:
Tin Plated
Heights:
8 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Widths:
10.3 in
Wire Size:
18-14 AWG
SoneparProductId:
SKU_US_25763730

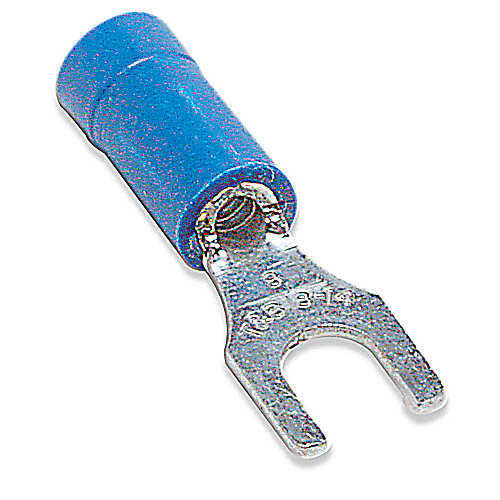

Vinyl-Insulated Fork Terminal, Length 1.11 Inches, Width .44 Inches, Maximum Insulation .170, Bolt Hole 1/4 Inch, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated Features: These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded. - Certifications: UL; CSA
