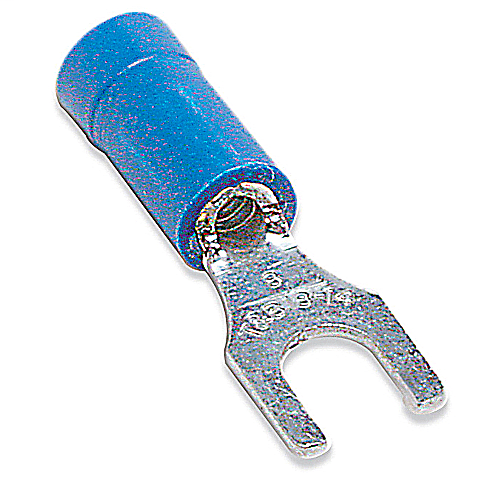

Thomas & Betts Co - Thomas & Betts 14RB-8F Vinyl-Insulated Fork Terminal - #18-14, #8bolt
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210800660
Catalog Number - 14RB-8F
Color - Blue
Conductor Size - 18-14 AWG
ERP_productname - TBCO 14RB-8F INS VINYL FORK TERM 18-14 #8 BLUE
Packaging
100 ea
EAN
05414363138051
Part #
210269
Catalog #
14RB-8F
Commercial reference
14RB-8F
12-Digit UPC:
786210800660
Catalog Number:
14RB-8F
Color:
Blue
Conductor Size:
18-14 AWG
ERP_productname:
TBCO 14RB-8F INS VINYL FORK TERM 18-14 #8 BLUE
Family Brand Name:
ABB
Finish:
Tin Plated
Heights:
7.2 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Widths:
8.7 in
Wire Size:
18-14 AWG
SoneparProductId:
SKU_US_25329435
Vinyl-Insulated Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #8, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated Certifications: UL; CSA - Features: These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.
