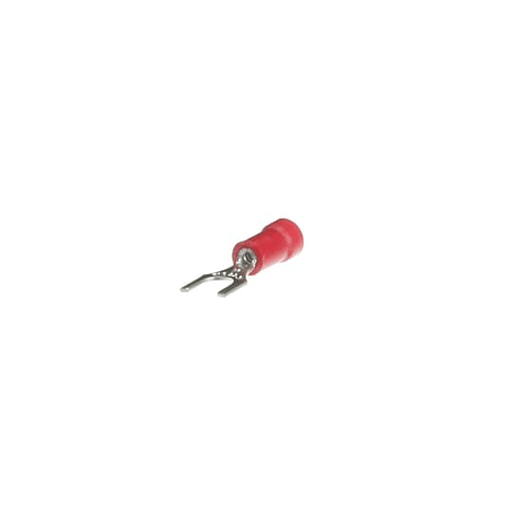

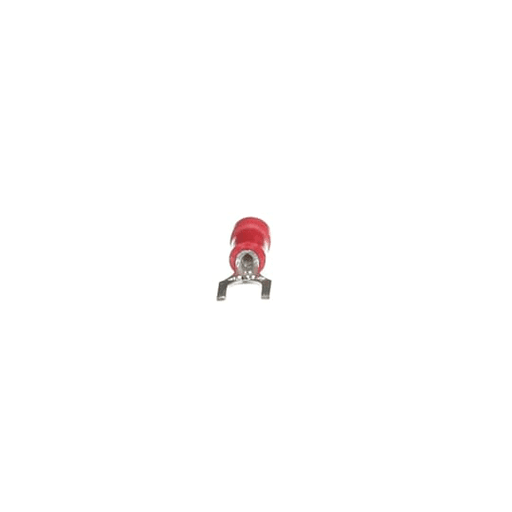

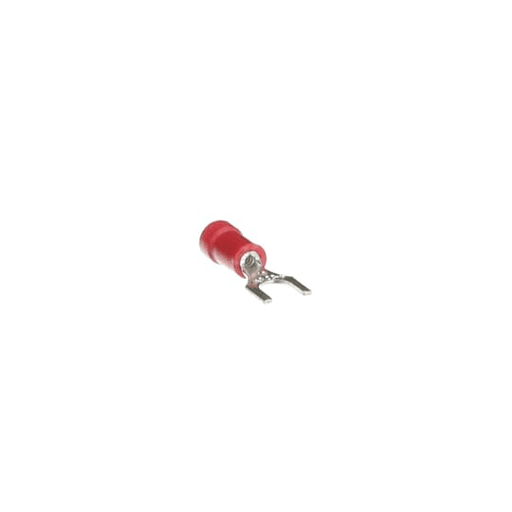

Thomas & Betts Co - Thomas & Betts 18RA-10F 22 to 16 AWG #10 Stud Red Electrotinned Copper Vinyl Insulated Fork Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210800936
Catalog Number - 18RA-10F
Color - Red
Conductor Size - 22-16 AWG
ERP_productname - TBCO 18RA-10F INS VINYL FORK TERM, 22-16, #10, RE
Packaging
1 ea
EAN
05414363138457
Part #
199962
Catalog #
18RA-10F
Commercial reference
18RA-10F
12-Digit UPC:
786210800936
Catalog Number:
18RA-10F
Color:
Red
Conductor Size:
22-16 AWG
ERP_productname:
TBCO 18RA-10F INS VINYL FORK TERM, 22-16, #10, RE
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Heights:
8.8 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Widths:
9-1/2 in
Wire Size:
22-16 AWG
SoneparProductId:
SKU_US_25452260
Vinyl-Insulated Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .150, Bolt Hole #10, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated Features: These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded. - Certifications: UL; CSA
