Thomas & Betts Co - Thomas & Betts 18RA-14 22 to 16 AWG 1/4 Inch Stud Red Electrotinned Copper Vinyl Insulated Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210800967
Catalog Number - 18RA-14
Color - Red
Conductor Size - 22-16 AWG
ERP_productname - TBCO 18RA-14 INS VINYL RING TERM, 22-16, 1/4, RE
Packaging
1 ea
EAN
05414363138471
Part #
194525
Catalog #
18RA-14
Commercial reference
18RA-14
12-Digit UPC:
786210800967
Catalog Number:
18RA-14
Color:
Red
Conductor Size:
22-16 AWG
ERP_productname:
TBCO 18RA-14 INS VINYL RING TERM, 22-16, 1/4, RE
Family Brand Name:
ABB
Finish:
Tin Plated
Heights:
8.2 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Long Sleeve
Voltage:
600 Volt
Widths:
10.3 in
Wire Size:
22-16 AWG
SoneparProductId:
SKU_US_28924634

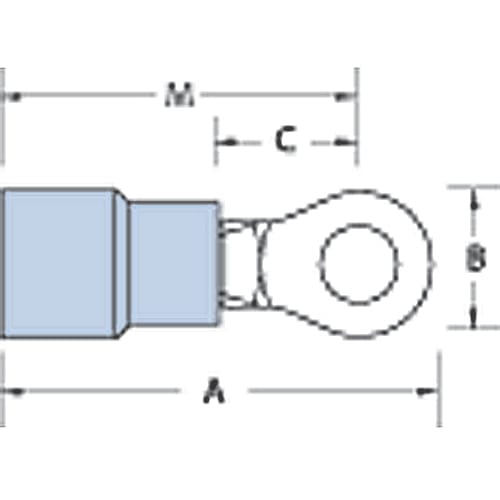

Vinyl-Insulated Ring Terminal, Length 1.13 Inches, Width .50 Inches, Maximum Insulation .150, Bolt Hole 1/4 Inch, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated Features: These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value. - Certifications: CSA; UL
