Thomas & Betts Co - Thomas & Betts 18RA-38 22 to 16 AWG 3/8 Inch Stud Red Electrotinned Copper Vinyl Insulated Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210800981
Catalog Number - 18RA-38
Color - Red
Conductor Size - 22-16 AWG
ERP_productname - CARB 18RA-38 INS VINYL RING TERM 22-16 3/8IN RED
Packaging
1 ea
EAN
05414363138525
Part #
298766
Catalog #
18RA-38
Commercial reference
18RA-38
12-Digit UPC:
786210800981
Catalog Number:
18RA-38
Color:
Red
Conductor Size:
22-16 AWG
ERP_productname:
CARB 18RA-38 INS VINYL RING TERM 22-16 3/8IN RED
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Heights:
8 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Vinyl Insulated Ring Terminal
Voltage:
600 Volt
Widths:
10.1 in
Wire Size:
22-16 AWG
SoneparProductId:
SKU_US_26082961

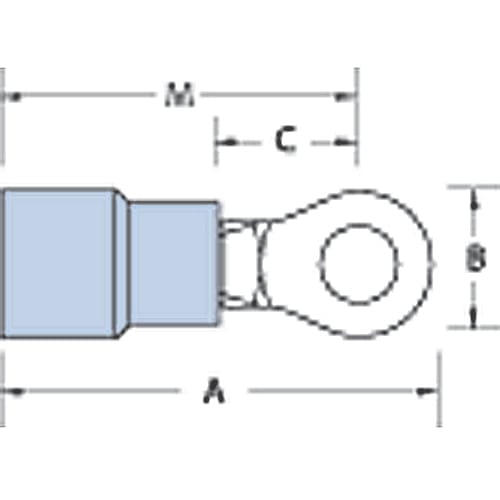

Vinyl-Insulated Ring Terminal, Length 1.24 Inches, Width .25 Inches, Maximum Insulation .150, Bolt Hole 3/8 Inch, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated Certifications: CSA; UL - Features: These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value.
