Thomas & Betts Co - Thomas & Betts 18RAD-18377 22-18 AWG Wire Range .89 Inch Length .187 Inch Tab Size Fully Insulated Nylon Female Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210819228
Catalog Number - 18RAD-18377
Color - Red
Conductor Size - 22-18 AWG
ERP_productname - TBCO 18RAD-18377 FULLY INS NYL FEM-187 DISC, 22-18 L
Packaging
1 ea
EAN
05414363138631
Part #
115496
Catalog #
18RAD-18377
Commercial reference
18RAD-18377
12-Digit UPC:
786210819228
Catalog Number:
18RAD-18377
Color:
Red
Conductor Size:
22-18 AWG
ERP_productname:
TBCO 18RAD-18377 FULLY INS NYL FEM-187 DISC, 22-18 L
Family Brand Name:
ABB
Finish:
Electro-Tin Plated
Material:
Brass
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
SoneparProductId:
SKU_US_25603222

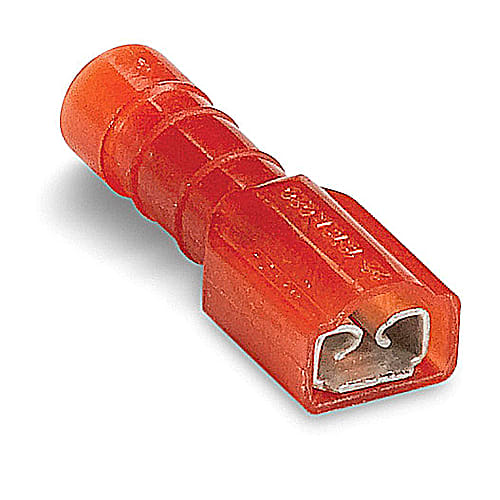

Nylon-Insulated Female Disconnect, Length .89 Inches, Width .30 Inches, Maximum Insulation .150, Tab Size .187x.032 Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated Features: Quick, reliable method of connection to terminal blocks and boards without the use of tools. Unique construction of the female disconnect offers long-term dependability. - Certifications: CSA; UL
