Thomas & Betts Co - Thomas & Betts 2RAS18X Heat-Shrinkable Butt Splice - #22-18
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210703268
Catalog Number - 2RAS18X
Color - Red
Conductor Size - 22-18 AWG
ERP_productname - TBCO 2RAS18X HEAT-SHR BUTT SPLICE, 22-18 LEN 1.5 DIA
Packaging
1 ea
EAN
05414363140559
Part #
217747
Catalog #
2RAS18X
Commercial reference
2RAS18X
12-Digit UPC:
786210703268
Catalog Number:
2RAS18X
Color:
Red
Conductor Size:
22-18 AWG
ERP_productname:
TBCO 2RAS18X HEAT-SHR BUTT SPLICE, 22-18 LEN 1.5 DIA
Family Brand Name:
ABB
Finish:
Electro-Tin Plated
Material:
Copper
Overall Length:
1-1/2 in
Sub Brand:
Sta-Kon®
Type:
Heat Shrinkable Butt Splice
Voltage:
600 Volt
SoneparProductId:
SKU_US_25255211

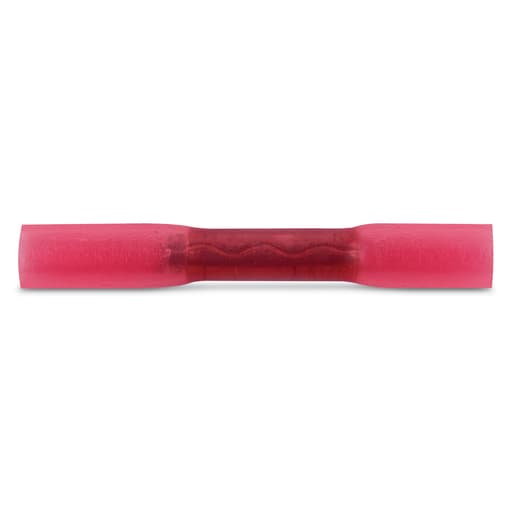

Heat Shrinkable Butt Splice, Length 1.50 Inches, Width .25 Inches, Maximum Insulation Diameter .170, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated Features: Self-insulated with heat-shrinkable polyolefin and internally coated sealant; Upon completed installation, a fully sealed connection is achieved to protect the joint against the degrading effects of galvanic action, corrosion, and environmental exposure.
