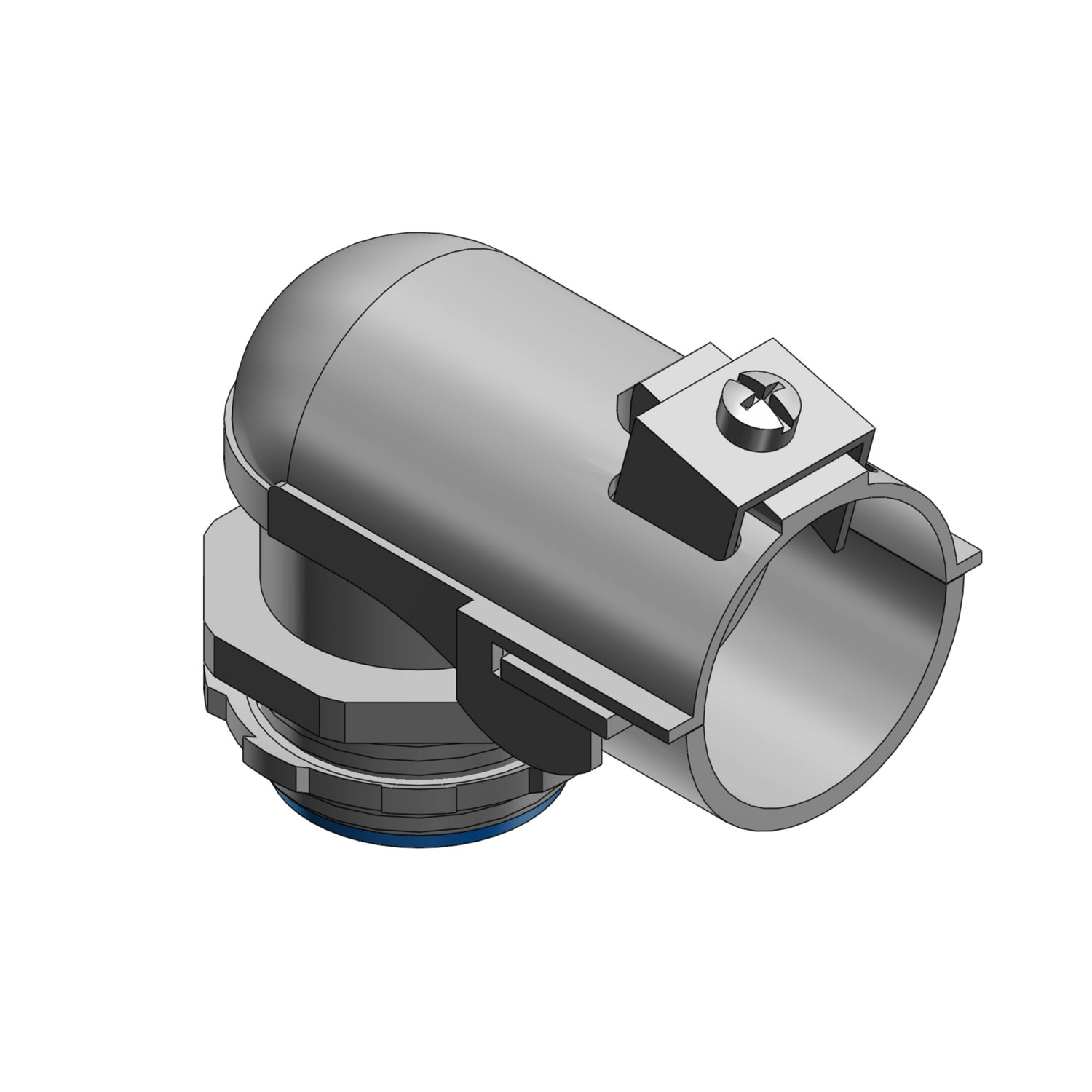

Thomas & Betts Co - Thomas & Betts 3135 3/4 Inch 90 Degree Insulated Tite Bite Flex Connector
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210031354
Applications - For Use with Armored Cable and Flexible Metal Conduit
Catalog Number - 3135
Color - Metallic
ERP_productname - TBCO 3135 3/4" TITE BITE 90 DEG INSUL
Packaging
1 ea
EAN
05414363140887
Part #
184382
Catalog #
3135
Commercial reference
3135
12-Digit UPC:
786210031354
Applications:
For Use with Armored Cable and Flexible Metal Conduit
Catalog Number:
3135
Color:
Metallic
ERP_productname:
TBCO 3135 3/4" TITE BITE 90 DEG INSUL
Family Brand Name:
ABB
Finish:
Zinc
Length:
50.8 mm
Material:
Steel
Size:
3/4 in
Sub Brand:
Tite-Bite®
Tc Connection:
Male Threaded
Trade Size:
3/4 Inch
Type:
90., 1-Piece
SoneparProductId:
SKU_US_25743515
Metal-Clad and Armored Cable Fitting, 90 Degree Bend, Trade Size 3/4 Inch, Knockout Size 3/4 Inch, Cable Range 0.906 to 1.093 Inch, Steel with Zinc Plating, Nylon Insulated Features: All the advantages of the straight connector with only one screw to tighten, except in the larger sizes where there are two.; By far the easiest and best to install when making sharp bends at the enclosure or equipments.; Narrow design makes it easy to install connectors in adjacent knockouts.; A peep hole on top provides for easy inspection of the ABC bushing. - Application: For use with Armored Cable and Flexible Metal Conduit.; To connect and effectively bond armored cable or flexible metal conduit to a box or an enclosure. - Notes: U.L. Listed as a grounding means under NEC 350-5
