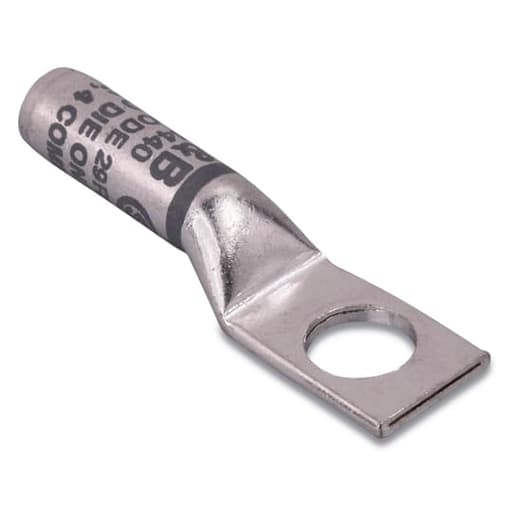

Thomas & Betts Co - Thomas & Betts 54440 Method Lug

Copper One-Hole High Voltage Lug, Long Barrel, Blind End, Max 15kV, Wire Size #4 AWG, 3/8 Inch Bolt Size, Tin Plated, Die Code 29R, Die Color Code Gray Rounding Features: High conductivity wrought copper, tin plated. Cable Area Clearly Identified on Lug.; The rounding die overlapped compressions provide a smooth round surface. This combined with the tapered barrel ends, addresses the controlling of potentially damaging electrical stresses of high voltages.; Recommended for up to 15KV applications, installed with standard T&B tools with special rounding dies. - Notes: Cat No. TBM15500 Die Adaptor required for TBM15I tool.; Cable Size: Concentric and compact strandings.
