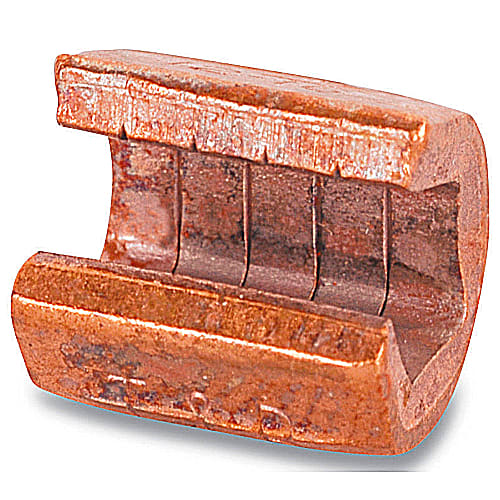

Thomas & Betts Co - Thomas & Betts 54715 Copper C-Tap Connector - 600V - 6-8/8-12
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210547152
Catalog Number - 54715
Conductor Size - 8-6 AWG
ERP_productname - TBCO 54715 CU CTAP MAIN6-8 BRNCH8-12 GRY
Family Brand Name - ABB
Packaging
1 ea
EAN
05414363144069
Part #
241576
Catalog #
54715
Commercial reference
54715
12-Digit UPC:
786210547152
Catalog Number:
54715
Conductor Size:
8-6 AWG
ERP_productname:
TBCO 54715 CU CTAP MAIN6-8 BRNCH8-12 GRY
Family Brand Name:
ABB
Finish:
Plain
Material:
Copper
Sub Brand:
Color-Keyed®
Type:
C-Tap
Voltage:
600 Volt
SoneparProductId:
SKU_US_25632048

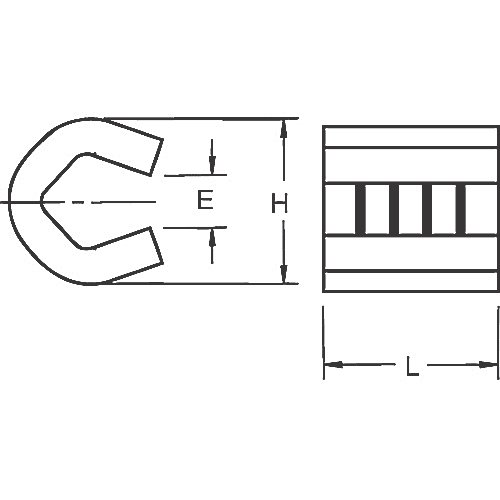

Copper C-Tap, 600V, Wire Range-Main: 6-8, Branch 8-12, Length 9/16 Inch, Height 5/8 Inch, Die Code 29, Die Color Code Gray Features: Heavy reinforcing ribs help locate compression dies and strengthen compressed joint.; Positive, all-around compression with low resistance and high pull-out values.; Ideal for pigtailing, 2-way splicing or tapping to an unbroken continuous main. - Notes: Taps can be supplied tin-plated. Add suffix TP to any catalog number.; Each C-Tap contains a range of conductor sizes. See Installation Instructions for wire range combinations.; UL approved for direct burial.
