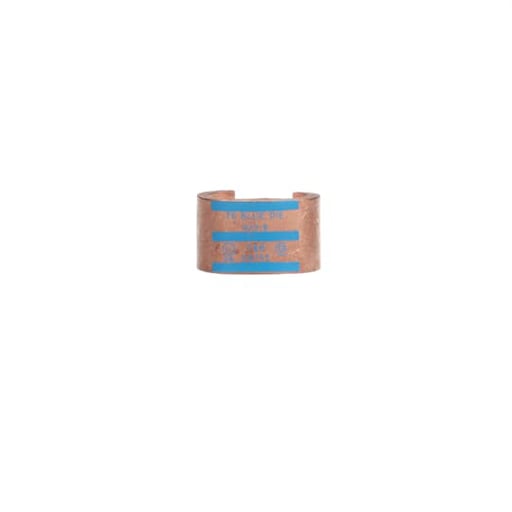

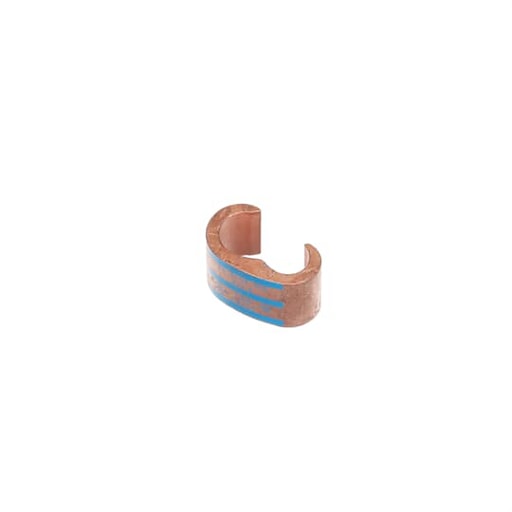

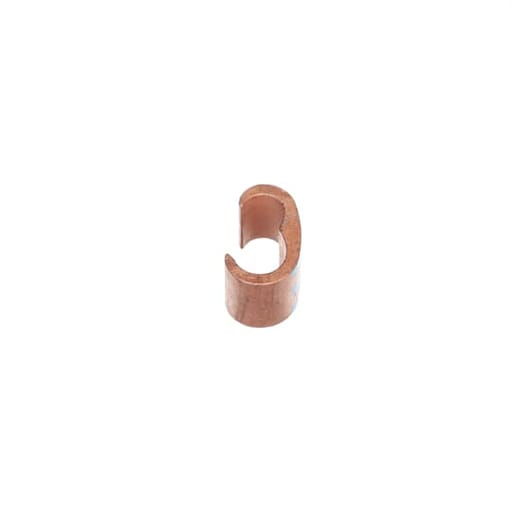

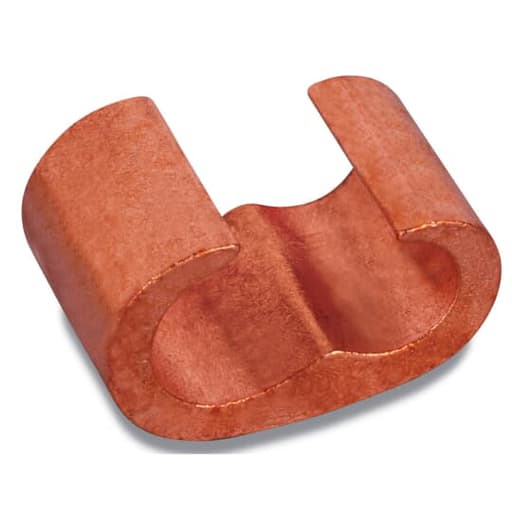

Thomas & Betts Co - Thomas & Betts 54755 Compression C-Tap
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210547558
Catalog Number - 54755
Conductor Size - 1-4/0 AWG
ERP_productname - CARB 54755 CU CTAP MAIN1-4/0 BRNCH2/0-8 BLU
Family Brand Name - ABB
Packaging
1 ea
EAN
05414363144144
Part #
273580
Catalog #
54755
Commercial reference
54755
12-Digit UPC:
786210547558
Catalog Number:
54755
Conductor Size:
1-4/0 AWG
ERP_productname:
CARB 54755 CU CTAP MAIN1-4/0 BRNCH2/0-8 BLU
Family Brand Name:
ABB
Finish:
Plain
Material:
Copper
Sub Brand:
Color-Keyed®
Type:
C-Tap
Voltage:
600 Volt
SoneparProductId:
SKU_US_25575751
Copper C-Tap, Wire Range Main: 1-4/0 Branch 2/0-8, Plain Finish, Die Code 76, Die Color Code Blue, Number of Crimps 2 Features: Easy to work with in tight spaces. Barely larger than conductor insulation once installed.; More economical than other taps and split bolts in terms of purchase, inventory, installation time, insulation and maintenance.; Color-coded for easy matching with proper die. - Notes: Each C-Tap contains a range of conductor sizes. See Installation Instructions for wire range combinations.; Catalog number 15500-TB adapter requred when using TBM15I and 155XX series dies.; Taps can be supplied tin-plated. Add suffix TP to any catalog number.; UL approved for direct burial.
