Thomas & Betts Co - Thomas & Betts 54770 4/0 AWG to 350 kcmil Black Plain Copper C-Tap Connector
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210547701
Catalog Number - 54770
Conductor Size - 4/0 AWG-350 kcmil
ERP_productname - TBCO 54770 CU CTAP MAIN4/0-350 BRNCH250-6 BLK
Family Brand Name - ABB
Packaging
1 ea
EAN
05414363144175
Part #
110817
Catalog #
54770
Commercial reference
54770
12-Digit UPC:
786210547701
Catalog Number:
54770
Conductor Size:
4/0 AWG-350 kcmil
ERP_productname:
TBCO 54770 CU CTAP MAIN4/0-350 BRNCH250-6 BLK
Family Brand Name:
ABB
Finish:
Plain
Material:
Copper
Sub Brand:
Color-Keyed®
Type:
C-Tap
Voltage:
600 Volt
SoneparProductId:
SKU_US_28953909

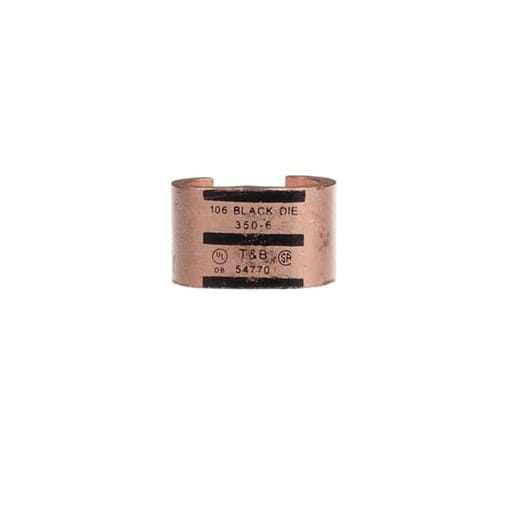

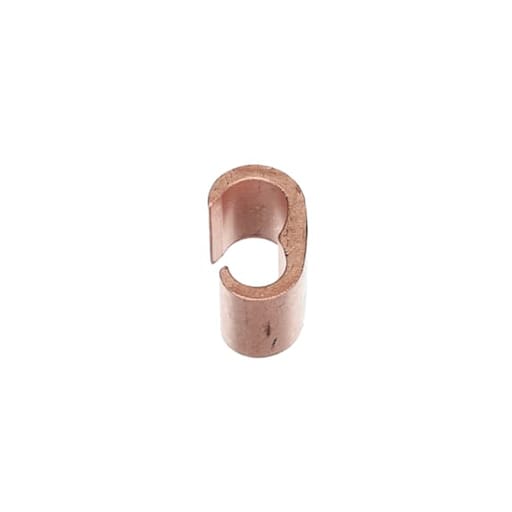

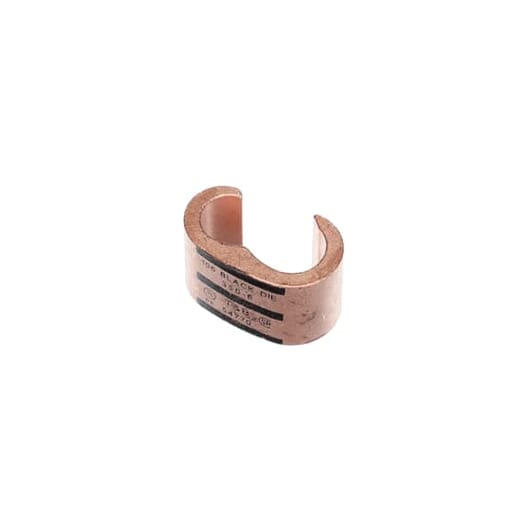

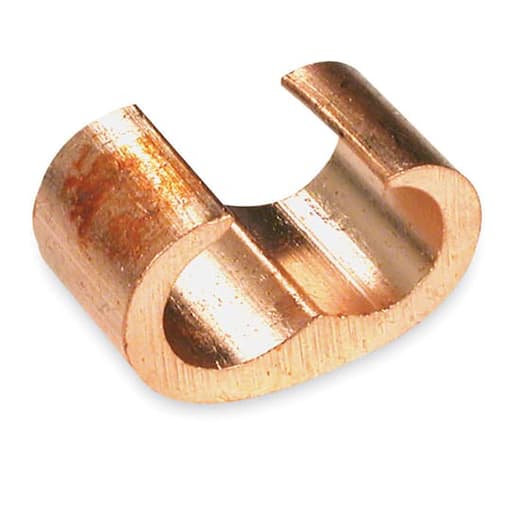

Copper C-Tap, Wire Range Main: 4/0-350 Branch 250-6, Plain Finish, Die Code 106H, Die Color Code Black, Number of Crimps 2 Features: Color-coded for easy matching with proper die.; More economical than other taps and split bolts in terms of purchase, inventory, installation time, insulation and maintenance.; Easy to work with in tight spaces. Barely larger than conductor insulation once installed. - Notes: Each C-Tap contains a range of conductor sizes. See Installation Instructions for wire range combinations.; UL approved for direct burial.; Catalog number 15500-TB adapter requred when using TBM15I and 155XX series dies.; Taps can be supplied tin-plated. Add suffix TP to any catalog number.
