Thomas & Betts Co - Thomas & Betts 54806 2-Way Connector
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210548067
Applications - Applications certified to 600 V and recommended up to 35 kV.
Catalog Number - 54806
Color - Gray
Conductor Size - 4 AWG
Packaging
50 ea
EAN
05414363110736
Part #
137377
Catalog #
54806
Commercial reference
54806
12-Digit UPC:
786210548067
Applications:
Applications certified to 600 V and recommended up to 35 kV.
Catalog Number:
54806
Color:
Gray
Conductor Size:
4 AWG
ERP_productname:
TBCO 54806 2-WAY CONNECTOR
Family Brand Name:
ABB
Finish:
Tin Plated
Material:
Copper
Sub Brand:
Color-Keyed®
Type:
2 Way, Long Sleeve
Voltage:
600 Volt
Wire Size:
4 AWG
SoneparProductId:
SKU_US_25641047

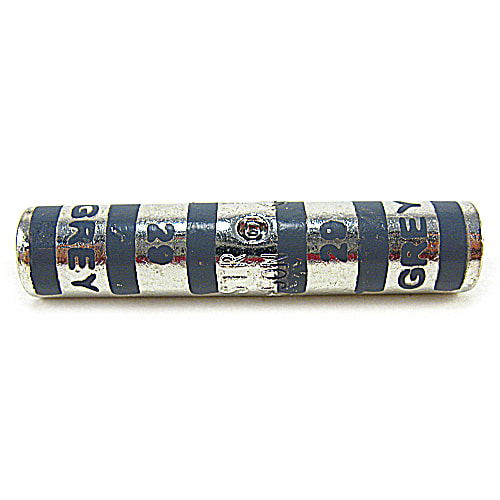

Copper Two-Way Splice, Long Barrel, Max 35kV, Wire Size #4 AWG, Length 1.75 Inches, Diameter 0.39 Inches, Tin Plated, Die Code 29, Die Color Code Gray Features: Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost.
